Capacitor con carcasa de plástico
Capacitor de polipropileno metalizado para redes snubber
Aplicación
El condensador de polipropileno metalizado para redes snubber MKP-IB se utiliza en redes snubber IGBT. El voltaje y la corriente máximos se absorben cuando se apaga el equipo para su seguridad.
Características
Baja inductancia intrínseca, poco incremento de temperatura.
Tipo seco, recubrimiento con resina epoxi sólida
Carcasa de plástico de ingeniería (fácil instalación),
Baja resistencia en serie equivalente (ERS)
Nota: Para otros voltajes, capacidades, tamaños y parámetros de funcionamiento, por favor, contáctenos.
Parámetros técnicosEstándar de referencia | IEC61071-60068, GB17702.1 |
Voltaje | 630VDC~2500VDC |
Capacidad | 0.10uF~4.7uF 1KHz @ +25℃ |
Tolerancia de capacidad | ±5 %(J) ±10 %(K) @ 100Hz @+25℃ |
Rango de temperaturas de funcionamiento | tgδ≤0.0006 @ 1KHz @ +25℃ |
Temperatura de almacenamiento | Ris x C: ≥5000S T: +25 °C @ 1min & voltaje de testeo: 100 Vdc |
Factor de disipación (DF) | 1.5Un para 10S |
Voltaje entre terminales y carcasa (Ut-c ) | 3000VAC 2s @+25℃ 50/60Hz |
Vida útil | 100,000 horas a Un y Th≤ 70°C |
Material dieléctrico | Estructura metalizada con evaporación de doble cara |
Estructura de salida de electrodos | Aguja de cobre bañado en estaño (L/N) de 0.8mm de grosor |
Carcasa | Plástico de ingeniería (UL94- V0) |
Material de relleno interno | Goma de relleno aislante (UL94- V0) |
Diseño ParámetrosMKP-IB-L/N Un=630VDC Urms=275VAC Upico =850VDC Cn= 0.33~4.7 MFD |

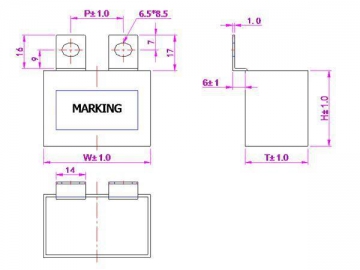

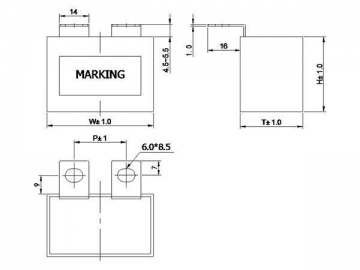

Número de parte en catálogo | C | Un | URMS | dv/dt | Ipico | ESR max @ 100 kHz | IRMS 100KHz @ 70°C | DIMENSIONES (mm) |
μF | Vdc | Vac | V/μs | A | mΩ | A | W | H | T | L/N--P |
MKP-IB334K630V | 0.33 | 630 | 275 | 350 | 116 | 11 | 6.4 | 42.5 | 32 | 22 | 23~25 |
MKP-IB474K630V | 0.47 | 630 | 275 | 350 | 165 | 9 | 7.2 | 42.5 | 32 | 22 | 23~25 |
MKP-IB684K630V | 0.68 | 630 | 275 | 350 | 238 | 8 | 8.3 | 42.5 | 32 | 22 | 23~25 |
MKP-IB105K630V | 1.0 | 630 | 275 | 350 | 350 | 7 | 9.6 | 42.5 | 32 | 22 | 23~25 |
MKP-IB125K630V | 1.2 | 630 | 275 | 350 | 420 | 7 | 10.4 | 42.5 | 35 | 25 | 23~25 |
MKP-IB155K630V | 1.5 | 630 | 275 | 350 | 525 | 6 | 11.5 | 42.5 | 37 | 28 | 23~25 |
MKP-IB205K630V | 2.0 | 630 | 275 | 350 | 700 | 6 | 13.0 | 42.5 | 45 | 33 | 23~25 |
MKP-IB255K630V | 2.5 | 630 | 275 | 350 | 875 | 5 | 14.5 | 42.5 | 45 | 33 | 23~25 |
MKP-IB125K630V | 1.2 | 630 | 275 | 275 | 330 | 5 | 10.4 | 50 | 38 | 25 | 23~28 |
MKP-IB155K630V | 1.5 | 630 | 275 | 275 | 412 | 5 | 11.6 | 50 | 38 | 25 | 23~28 |
MKP-IB205K630V | 2.0 | 630 | 275 | 275 | 550 | 5 | 13.1 | 50 | 43 | 30 | 23~28 |
MKP-IB255K630V | 2.5 | 630 | 275 | 275 | 688 | 5 | 14.4 | 50 | 43 | 30 | 23~28 |
MKP-IB305K630V | 3.0 | 630 | 275 | 220 | 660 | 4 | 15.6 | 58 | 45 | 30 | 23~40 |
MKP-IB335K630V | 3.3 | 630 | 275 | 220 | 726 | 4 | 16.2 | 58 | 45 | 30 | 23~40 |
MKP-IB405K630V | 4.0 | 630 | 275 | 220 | 880 | 4 | 17.6 | 58 | 50 | 35 | 23~40 |
MKP-IB475K630V | 4.7 | 630 | 275 | 220 | 1034 | 4 | 19.0 | 58 | 50 | 35 | 23~40 |
MKP-IB-L/N Un=1000VDC Urms=500VAC Upico =1400VDC Cn= 0.33 ~ 2.7 MFD |
Número de parte en catálogo | C | Un | URMS | dv/dt | Ipico | ESR max @ 100 kHz | IRMS 100KHz @ 70°C | DIMENSIONES (mm) |
μF | Vdc | Vac | V/μs | A | mΩ | A | W | H | T | L/N--P |
MKP-IB334K1000V | 0.33 | 1000 | 500 | 570 | 188 | 7.5 | 8.9 | 42.5 | 32 | 22 | 23~25 |
MKP-IB474K1000V | 0.47 | 1000 | 500 | 570 | 268 | 7.5 | 10.2 | 42.5 | 32 | 22 | 23~25 |
MKP-IB684K1000V | 0.68 | 1000 | 500 | 570 | 388 | 6.5 | 11.8 | 42.5 | 35 | 25 | 23~25 |
MKP-IB105K1000V | 1.0 | 1000 | 500 | 570 | 570 | 5.5 | 13.9 | 42.5 | 37 | 28 | 23~25 |
MKP-IB125K1000V | 1.2 | 1000 | 500 | 570 | 684 | 5.5 | 15.1 | 42.5 | 45 | 33 | 23~25 |
MKP-IB684K1000V | 0.68 | 1000 | 500 | 450 | 306 | 6.5 | 11.8 | 50 | 38 | 25 | 23~28 |
MKP-IB105K1000V | 1.0 | 1000 | 500 | 450 | 450 | 5.5 | 13.8 | 50 | 38 | 25 | 23~28 |
MKP-IB125K1000V | 1.2 | 1000 | 500 | 450 | 540 | 5.5 | 14.9 | 50 | 43 | 30 | 23~28 |
MKP-IB155K1000V | 1.5 | 1000 | 500 | 450 | 675 | 5.5 | 16.4 | 50 | 43 | 30 | 23~28 |
MKP-IB205K1000V | 2.0 | 1000 | 500 | 380 | 760 | 5.0 | 18.5 | 58 | 45 | 30 | 23~40 |
MKP-IB225K1000V | 2.2 | 1000 | 500 | 380 | 836 | 5.0 | 19.3 | 58 | 45 | 30 | 23~40 |
MKP-IB255K1000V | 2.5 | 1000 | 500 | 380 | 950 | 5.0 | 20.4 | 58 | 50 | 35 | 23~40 |
MKP-IB275K1000V | 2.7 | 1000 | 500 | 380 | 1026 | 5.0 | 21.2 | 58 | 50 | 35 | 23~40 |
MKP-IB-L/N Un=1200VDC Urms=550VAC Upico =1600VDC Cn= 0.22 ~ 2.2 MFD |
Número de parte en catálogo | C | Un | URMS | dv/dt | Ipico | ESR max @ 100 kHz | IRMS 100KHz @ 70°C | DIMENSIONES (mm) |
μF | Vdc | Vac | V/μs | A | mΩ | A | W | H | T | L/N--P |
MKP-IB224K1200V | 0.22 | 1200 | 550 | 700 | 154 | 9 | 8.5 | 42.5 | 32 | 22 | 23~25 |
MKP-IB334K1200V | 0.33 | 1200 | 550 | 700 | 231 | 8 | 9.9 | 42.5 | 32 | 22 | 23~25 |
MKP-IB474K1200V | 0.47 | 1200 | 550 | 700 | 329 | 7 | 11.5 | 42.5 | 32 | 22 | 23~25 |
MKP-IB684K1200V | 0.68 | 1200 | 550 | 700 | 476 | 6 | 13.3 | 42.5 | 37 | 28 | 23~25 |
MKP-IB105K1200V | 1.0 | 1200 | 550 | 700 | 700 | 6 | 16.0 | 42.5 | 45 | 33 | 23~25 |
MKP-IB474K1200V | 0.47 | 1200 | 550 | 540 | 253 | 6 | 11.5 | 50 | 38 | 25 | 23~28 |
MKP-IB684K1200V | 0.68 | 1200 | 550 | 540 | 367 | 6 | 13.4 | 50 | 38 | 25 | 23~28 |
MKP-IB824K1200V | 0.82 | 1200 | 550 | 540 | 540 | 5 | 15.8 | 50 | 38 | 25 | 23~28 |
MKP-IB105K1200V | 1.0 | 1200 | 550 | 540 | 648 | 4 | 17.3 | 50 | 43 | 30 | 23~28 |
MKP-IB125K1200V | 1.2 | 1200 | 550 | 540 | 648 | 4 | 17.8 | 50 | 43 | 30 | 23~28 |
MKP-IB155K1200V | 1.5 | 1200 | 550 | 430 | 645 | 4 | 19.0 | 58 | 45 | 30 | 23~40 |
MKP-IB205K1200V | 2.0 | 1200 | 550 | 430 | 860 | 4 | 21.6 | 58 | 50 | 35 | 23~40 |
MKP-IB225K1200V | 2.2 | 1200 | 550 | 430 | 946 | 4 | 22.5 | 58 | 50 | 35 | 23~40 |
MKP-IB-L/N Un=1600VDC Urms=630VAC Upico =2000VDC Cn= 0.10 ~ 1.5 MFD |
Número de parte en catálogo | C | Un | URMS | dv/dt | Ipico | ESR max @ 100 kHz | IRMS 100KHz @ 70°C | DIMENSIONES (mm) |
μF | Vdc | Vac | V/μs | A | mΩ | A | W | H | T | L/N--P |
MKP-IB104K1600V | 0.10 | 1600 | 630 | 990 | 99 | 12 | 7.5 | 42.5 | 32 | 22 | 23~25 |
MKP-IB154K1600V | 0.15 | 1600 | 630 | 990 | 148 | 9 | 8.6 | 42.5 | 32 | 22 | 23~25 |
MKP-IB224K1600V | 0.22 | 1600 | 630 | 990 | 218 | 8 | 9.9 | 42.5 | 32 | 22 | 23~25 |
MKP-IB334K1600V | 0.33 | 1600 | 630 | 990 | 327 | 7 | 11.7 | 42.5 | 32 | 22 | 23~25 |
MKP-IB394K1600V | 0.39 | 1600 | 630 | 990 | 386 | 7 | 12.8 | 42.5 | 35 | 25 | 23~25 |
MKP-IB474K1600V | 0.47 | 1600 | 630 | 990 | 465 | 6 | 13.6 | 42.5 | 37 | 28 | 23~25 |
MKP-IB684K1600V | 0.68 | 1600 | 630 | 990 | 673 | 6 | 16.5 | 42.5 | 45 | 33 | 23~25 |
MKP-IB474K1600V | 0.47 | 1600 | 630 | 760 | 357 | 5 | 13.8 | 50 | 38 | 25 | 23~28 |
MKP-IB684K1600V | 0.68 | 1600 | 630 | 760 | 517 | 5 | 16.2 | 50 | 43 | 30 | 23~28 |
MKP-IB824K1600V | 0.82 | 1600 | 630 | 760 | 623 | 5 | 17.5 | 50 | 43 | 30 | 23~28 |
MKP-IB105K1600V | 1.0 | 1600 | 630 | 600 | 600 | 5 | 19.0 | 58 | 45 | 30 | 23~40 |
MKP-IB125K1600V | 1.2 | 1600 | 630 | 600 | 720 | 5 | 20.6 | 58 | 45 | 30 | 23~40 |
MKP-IB155K1600V | 1.5 | 1600 | 630 | 600 | 900 | 4 | 22.7 | 58 | 50 | 35 | 23~40 |
MKP-IB-L/N Un=2000VDC Urms=700VAC Upico =2500VDC Cn= 0.10 ~ 1.0 MFD |
Número de parte en catálogo | C | Un | URMS | dv/dt | Ipico | ESR max @ 100 kHz | IRMS 100KHz @ 70°C | DIMENSIONES (mm) |
μF | Vdc | Vac | V/μs | A | mΩ | A | W | H | T | L/N--P |
MKP-IB104K2000V | 0.10 | 2000 | 750 | 1300 | 130 | 12 | 8.3 | 42.5 | 32 | 22 | 23~25 |
MKP-IB124K2000V | 0.12 | 2000 | 750 | 1300 | 156 | 9 | 8.9 | 42.5 | 32 | 22 | 23~25 |
MKP-IB154K2000V | 0.15 | 2000 | 750 | 1300 | 195 | 8 | 9.7 | 42.5 | 32 | 22 | 23~25 |
MKP-IB224K2000V | 0.22 | 2000 | 750 | 1300 | 286 | 7 | 11.4 | 42.5 | 35 | 25 | 23~25 |
MKP-IB334K2000V | 0.33 | 2000 | 750 | 1300 | 429 | 6 | 13.5 | 42.5 | 37 | 28 | 23~25 |
MKP-IB474K2000V | 0.47 | 2000 | 750 | 1300 | 611 | 6 | 15.8 | 42.5 | 45 | 33 | 23~25 |
MKP-IB334K2000V | 0.33 | 2000 | 750 | 1000 | 330 | 6 | 13.7 | 50 | 38 | 25 | 23~28 |
MKP-IB474K2000V | 0.47 | 2000 | 750 | 1000 | 470 | 5 | 15.9 | 50 | 38 | 25 | 23~28 |
MKP-IB564K2000V | 0.56 | 2000 | 750 | 1000 | 560 | 4 | 17.1 | 50 | 43 | 30 | 23~28 |
MKP-IB564K2000V | 0.56 | 2000 | 750 | 800 | 448 | 4 | 16.7 | 58 | 38 | 26 | 23~40 |
MKP-IB684K2000V | 0.68 | 2000 | 750 | 800 | 544 | 4 | 18.5 | 58 | 45 | 30 | 23~40 |
MKP-IB105K2000V | 1.0 | 2000 | 750 | 800 | 800 | 4 | 22.0 | 58 | 50 | 35 | 23~40 |
MKP-IB-L/N Un=2500VDC Urms=750VAC Upico =3000VDC Cn= 0.022 ~ 0.68 MFD |
Número de parte en catálogo | C | Un | URMS | dv/dt | Ipico | ESR max @ 100 kHz | IRMS 100KHz @ 70°C | DIMENSIONES (mm) |
μF | Vdc | Vac | V/μs | A | mΩ | A | W | H | T | L/N--P |
MKP-IB104K2500V | 0.10 | 2500 | 1000 | 1900 | 190 | 11 | 8.3 | 42.5 | 32 | 22 | 23~25 |
MKP-IB124K2500V | 0.12 | 2500 | 1000 | 1900 | 228 | 9 | 8.9 | 42.5 | 32 | 22 | 23~25 |
MKP-IB154K2500V | 0.15 | 2500 | 1000 | 1900 | 285 | 7 | 9.7 | 42.5 | 35 | 25 | 23~25 |
MKP-IB224K2500V | 0.22 | 2500 | 1000 | 1900 | 418 | 7 | 11.4 | 42.5 | 37 | 28 | 23~25 |
MKP-IB334K2500V | 0.33 | 2500 | 1000 | 1900 | 429 | 7 | 13.5 | 42.5 | 45 | 33 | 23~25 |
MKP-IB474K2500V | 0.47 | 2500 | 1000 | 1900 | 429 | 7 | 13.5 | 42.5 | 45 | 33 | 23~25 |
MKP-IB474K2500V | 0.47 | 2500 | 1000 | 1200 | 564 | 5 | 19.1 | 58 | 45 | 30 | 23~40 |
MKP-IB684K2500V | 0.68 | 2500 | 1000 | 1200 | 816 | 4 | 22.5 | 58 | 50 | 35 | 23~40 |
Guías de selección
MKP-IB 105 J 1200V N26
---------- ---- --- ------ -----
N26 estructura de electrodo externo: N cobre, P=26mm
1200V voltaje: Un=1200VDC
J tolerancia de capacidad: J(±5%),K(±10%)
105 capacidad: Cn=1.0 uF
Capacitor de polipropileno metalizado para redes snubber MKP-IB (tipo IB)
Diseñamos condensadores con distintos parámetros para que se adapten a las necesidades del cliente. Si le interesa saber sobre más opciones de condensadores con filtro AC/DC-LINK, por favor, diríjase a las especificaciones del condensador de película metalizada.
