Descripción del producto
Elmotor de inducción de corriente alterna serie YE2 cuenta con material polimérico de aislación, estructura aislante especial e impregnación de presión al vacío, para que tenga una buena capacidad de adaptación. Se puede utilizar para maquinaria de envasado de alimentos, equipos químicos, máquinas para trabajos en madera, grúas, maquinaria de construcción, compresores, cintas transportadoras, dragas, transvertidor de motores, lavadoras, máquinas laminadoras, ventiladores de tiro, etc.
La serie de motores asíncronos de corriente alterna de acuerdo con la velocidad:
1. La velocidad es 3000r/min y la potencia es de 0.75~22kw;
2. La velocidad es 1500r/min y la potencia es de 0.75~22kw;
3. La velocidad es 1000r/min La velocidad es 0.75~15kw.
El voltaje de los tres modelos es 380V.
Parámetros técnicos
3000r/min, 380V, 50Hz
Modelo | Potencia | Velocidad | Eficiencia | Factor de potencia | Corriente nominal | Par nominal | Par con rotor bloqueado | Par máx | Corriente de par con rotor bloqueado |
Par nominal | Par nominal | Corriente nominal |
Kw | HP | rpm | η% | COS ⌀ | A | Nm | Ts/Tn | Tmax/Tn | Is/I n |
YE2-801-2 | 0.75 | 1 | 2875 | 77.4 | 0.83 | 1.77 | 2.49 | 2.3 | 2.3 | 7.0 |
YC2-802-2 | 1.1 | 1.5 | 2875 | 79.B | 0.94 | 2.50 | 3.65 | 2.2 | 2.3 | 7.3 |
YE2-90S-2 | 1.5 | 2 | 2890 | 81.3 | 0.84 | 3.32 | 4.96 | 2.2 | 2.3 | 7.6 |
YE2-90L-2 | 2.2 | 3 | 2890 | 83.2 | 0.85 | 4.72 | 7.27 | 2.2 | 2.3 | 7.6 |
YE2-100L-2 | 3 | 4 | 2890 | 84.6 | 0.87 | 6.17 | 9.91 | 2.2 | 2.3 | 7.8 |
YE2-112M-2 | 4 | 5.5 | 2910 | 85.8 | 0.88 | 8.04 | 13.1 | 2.2 | 2.3 | 8.3 |
YE2-132S1-2 | 5.5 | 7.5 | 2930 | 87.0 | 0.86 | 11.2 | 17.9 | 2.0 | 2.3 | 8.3 |
YE2-132S2-2 | 7.5 | 10 | 2840 | 88.1 | 0.88 | 14.6 | 25.2 | 2.0 | 2.3 | 7.9 |
YE2-160M1-2 | 11 | 15 | 2930 | 89.4 | 0.89 | 21.0 | 35.9 | 2.0 | 2.3 | 8.1 |
YE2-160M2-2 | 15 | 20 | 2930 | 90.3 | 0.89 | 28.4 | 40.9 | 2.0 | 2.3 | 8.1 |
YE2-160L-2 | 18.5 | 25 | 2935 | 90.9 | 0.89 | 34.7 | 60.2 | 2.0 | 2.3 | 8.2 |
YC2-100M-2 | 22 | 30 | 2940 | 91.3 | 0.88 | 41.6 | 71.5 | 2.0 | 2.3 | 8.2 |
1500r/min, 380V, 50Hz
Modelo | Potencia | Velocidad | Eficiencia | Factor de potencia | Corriente nominal | Par nominal | Par con rotor bloqueado | Par máx | Corriente de par con rotor bloqueado |
Par nominal | Par nominal | Corriente nominal |
Kw | HP | rpm | η% | COS ⌀ | A | Nm | Ts/Tn | Tmax/Tn | Is/I n |
YE2-802-4 | 0.75 | 1 | 1400 | 79.6 | 0.76 | 1.88 | 5.12 | 2.3 | 2.3 | 6.6 |
YE2-90S-4 | 1.1 | 1.5 | 1440 | 91.4 | 0.77 | 2.67 | 7.30 | 2.3 | 2.3 | 6.8 |
YE2-90L-4 | 1.5 | 2 | 1440 | 82.8 | 0.77 | 3.57 | 9.95 | 2.3 | 2.3 | 7.0 |
YE2-100L1-4 | 2.2 | 3 | 1440 | 84.3 | 0.81 | 4.90 | 14.6 | 2.3 | 2.3 | 7.6 |
YE2-100L2-4 | 3 | 4 | 1440 | 85.5 | 0.82 | 6.50 | 19.9 | 2.3 | 2.3 | 7.6 |
YE2-112M-4 | 4 | 5.5 | 1440 | 86.6 | 0.82 | 8.56 | 26.5 | 2.2 | 2.3 | 7.8 |
YE2-132S-4 | 5.5 | 7.5 | 1450 | 87.7 | 0.83 | 11.5 | 36.2 | 2.0 | 2.3 | 7.9 |
YE2-132M-4 | 7.5 | 10 | 1450 | 88.7 | 0.84 | 15.3 | 49.4 | 2.0 | 2.3 | 7.5 |
YE2-160M-4 | 11 | 15 | 1460 | 89.8 | 0.84 | 22.2 | 72.0 | 2.2 | 2.3 | 7.7 |
YE2-160L-4 | 15 | 20 | 1460 | 90.6 | 0.85 | 29.6 | 90.1 | 2.2 | 2.3 | 7.8 |
YE2-180M-4 | 18.5 | 25 | 1470 | 91.2 | 0.86 | 35.8 | 120.2 | 2.0 | 2.3 | 7.8 |
YE2-180L-4 | 22 | 30 | 1470 | 91.6 | 0.86 | 42.4 | 142.9 | 2.0 | 2.3 | 7.8 |
1000r/min, 380V, 50Hz
Modelo | Potencia | Velocidad | Eficiencia | Factor de potencia | Corriente nominal | Par nominal | Par con rotor bloqueado | Par máx | Corriente de par con rotor bloqueado |
Par nominal | Par nominal | Corriente nominal |
Kw | HP | rpm | η% | COS ⌀ | A | Nm | Ts/Tn | Tmax/Tn | Is/I n |
YE2-90S-6 | 0.75 | 1 | 930 | 75.9 | 0.72 | 2.09 | 7.7 | 2.0 | 2.1 | 6.0 |
YE2-90L-6 | 1.1 | 1.5 | 940 | 78.1 | 0.72 | 2.97 | 11.2 | 2.0 | 2.1 | 6.0 |
YE2-100L-6 | 1.5 | 2 | 940 | 79.8 | 0.75 | 3.80 | 15.2 | 2.0 | 2.1 | 6.5 |
YE2-112M-6 | 2.2 | 3 | 960 | 81.8 | 0.76 | 5.38 | 21.9 | 2.0 | 2.1 | 6.6 |
YE2-132S-6 | 3 | 4 | 960 | 83.3 | 0.76 | 7.20 | 29.8 | 2.0 | 2.1 | 6.8 |
YE2-132M1-6 | 4 | 5.5 | 960 | 84.6 | 0.76 | 9.45 | 39.8 | 2.0 | 2.1 | 6.8 |
YE2-132M2-6 | 5.5 | 7.5 | 960 | 06.0 | 0.77 | 12.6 | 54.7 | 2.0 | 2.1 | 7.0 |
YE2-160M-6 | 7.5 | 10 | 970 | 87.2 | 0.78 | 16.8 | 73.8 | 2.0 | 2.1 | 7.0 |
YE2-160L-6 | 11 | 15 | 970 | 88.7 | 0.78 | 24.2 | 108.3 | 2.0 | 2.1 | 7.2 |
YE2-180L-6 | 15 | 20 | 970 | 89.7 | 0.81 | 31.4 | 147.7 | 2.0 | 2.1 | 7.3 |
Dimensiones externas para instalación:

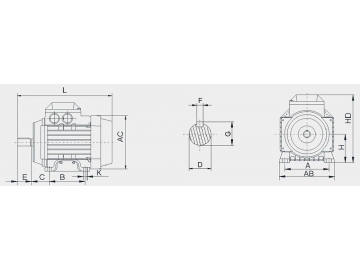

IM B3 H80-132
Gráfico de dimensiones
Marco No. | A | B | C | D | E | F | G | H | K | AB | AC | HD | L |
80M | 125 | 100 | 50 | ⌀19 | 40 | 6 | 21.5 | 80 | ⌀10 | 154 | 145x145 | 190 | 270 |
90S | 140 | 100 | 56 | ⌀ 24 | 50 | 8 | 27 | 90 | ⌀10 | 180 | 160x160 | 205 | 316 |
90L | 140 | 125 | 56 | ⌀24 | 50 | 8 | 27 | 90 | ⌀10 | 180 | 160x160 | 205 | 316 |
100L | 160 | 140 | 63 | ⌀28 | 60 | 8 | 31 | 100 | ⌀12 | 205 | 185x185 | 240 | 360 |
112M | 190 | 140 | 70 | ⌀28 | 60 | 8 | 31 | 112 | ⌀12 | 235 | 200x200 | 270 | 400 |
132S | 216 | 140 | 89 | ⌀38 | 80 | 10 | 41 | 132 | ⌀12 | 261 | 245x245 | 310 | 470 |
132M | 216 | 178 | 89 | ⌀38 | 80 | 10 | 41 | 132 | ⌀12 | 261 | 245 x24b | 310 | 470 |
160M | 254 | 210 | 108 | ⌀42 | 110 | 12 | 45 | 160 | ⌀14.5 | 320 | 320x320 | 450 | 640 |
160L | 254 | 254 | 108 | ⌀42 | 110 | 12 | 45 | 160 | ⌀14.5 | 320 | 320x320 | 450 | 680 |
180M | 279 | 241 | 121 | ⌀48 | 110 | 14 | 51.5 | 180 | ⌀14.5 | 355 | 360x360 | 500 | 790 |
180L | 279 | 279 | 121 | ⌀48 | 110 | 14 | 51.5 | 180 | ⌀14.5 | 355 | 360x360 | 500 | 930 |

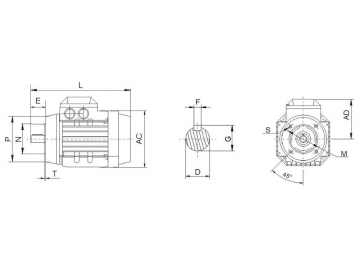

IM B14 H80-112
Gráfico de dimensiones
Marco No. | D | E | F | G | M | N | P | S | T | AC | AD | L |
80M | ⌀19 | 40 | 6 | 21.5 | 100 | 80 | 120 | M6 | 3.0 | 145x145 | 115 | 270 |
90S | ⌀24 | 50 | 8 | 27 | 115 | 95 | 140 | M8 | 3.0 | 160x160 | 122 | 316 |
90L | ⌀24 | 50 | 8 | 27 | 115 | 95 | 140 | M8 | 3.0 | 160x160 | 122 | 326 |
100L | ⌀28 | 60 | 8 | 31 | 130 | 110 | 155 | M8 | 3.5 | 185x185 | 137 | 370 |
112M | ⌀28 | 60 | 8 | 31 | 130 | 110 | 160 | M8 | 3.5 | 200 x 200 | 155 | 400 |

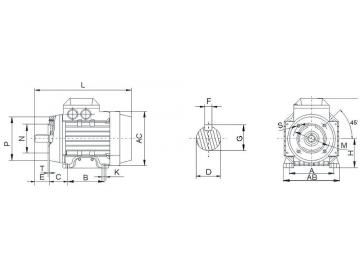

IM B34 H80-132
Gráfico de dimensiones
Marco No. | A | B | C | D | E | F | G | H | K | M | N | P | S | T | AB | AC | HD | L |
80M | 125 | 100 | 50 | ⌀19 | 40 | 6 | 21.5 | 80 | ⌀10 | 100 | 80 | 120 | M6 | 3.0 | 154 | 145x145 | 190 | 270 |
90S | 140 | 100 | 56 | ⌀ 24 | 50 | 8 | 27 | 90 | ⌀10 | 115 | 95 | 140 | M8 | 3.0 | 180 | 160x160 | 205 | 316 |
90L | 140 | 125 | 56 | ⌀24 | 50 | 8 | 27 | 90 | ⌀10 | 115 | 95 | 140 | M8 | 3.0 | 180 | 160x160 | 205 | 316 |
100L | 160 | 140 | 63 | ⌀28 | 60 | 8 | 31 | 100 | ⌀12 | 130 | 110 | 155 | M8 | 3.5 | 205 | 185x185 | 240 | 360 |
112M | 190 | 140 | 70 | ⌀28 | 60 | 8 | 31 | 112 | ⌀12 | 130 | 110 | 160 | M8 | 3.5 | 235 | 200x200 | 270 | 400 |

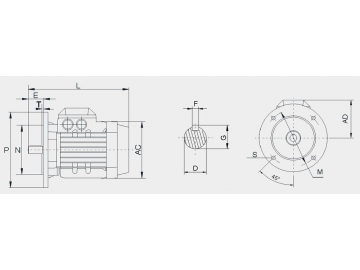

IM B5 H80-180
Gráfico de dimensiones
Marco No. | D | E | F | G | H | K | M | N | P | S | T | AC | AD | L |
80M | ⌀19 | 40 | 6 | 21.5 | 80 | ⌀10 | 165 | 130 | 200 | 12 | 3.5 | 145x145 | 115 | 270 |
90S | ⌀ 24 | 50 | 8 | 27 | 90 | ⌀10 | 165 | 130 | 200 | 12 | 3.5 | 160x160 | 122 | 316 |
90L | ⌀24 | 50 | 8 | 27 | 90 | ⌀10 | 165 | 130 | 200 | 12 | 3.5 | 160x160 | 122 | 326 |
100L | ⌀28 | 60 | 8 | 31 | 100 | ⌀12 | 215 | 180 | 250 | 14.5 | 4 | 185x185 | 137 | 360 |
112M | ⌀28 | 60 | 8 | 31 | 112 | ⌀12 | 215 | 180 | 250 | 14.5 | 4 | 200x200 | 155 | 400 |
132S | ⌀38 | 80 | 10 | 41 | 132 | ⌀12 | 265 | 230 | 300 | 14.5 | 4 | 245x245 | 180 | 470 |
132M | ⌀38 | 80 | 10 | 41 | 132 | ⌀12 | 265 | 230 | 300 | 14.5 | 4 | 245 x24b | 180 | 470 |
160M | ⌀42 | 110 | 12 | 45 | 160 | ⌀14.5 | 300 | 250 | 350 | 18.5 | 5 | 320x320 | 290 | 640 |
160L | ⌀42 | 110 | 12 | 45 | 160 | ⌀14.5 | 300 | 250 | 350 | 18.5 | 5 | 320x320 | 290 | 680 |
180M | ⌀48 | 110 | 14 | 51.5 | 180 | ⌀14.5 | 300 | 255 | 350 | 18.5 | 5 | 360x360 | 320 | 790 |
180L | ⌀48 | 110 | 14 | 51.5 | 180 | ⌀14.5 | 300 | 250 | 350 | 18.5 | 5 | 360x360 | 320 | 930 |

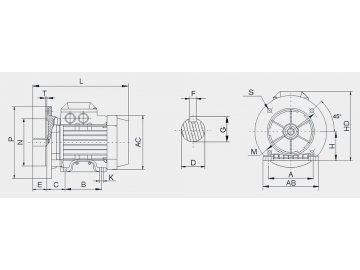

IM B35 H80-180
Gráfico de dimensiones
Marco No. | A | B | C | D | E | F | G | H | K | M | N | P | S | T | AB | AC | HD | L |
80M | 125 | 100 | 50 | ⌀19 | 40 | 6 | 21.5 | 80 | ⌀10 | 165 | 130 | 200 | 12 | 3.5 | 154 | 145x145 | 190 | 270 |
90S | 140 | 100 | 56 | ⌀ 24 | 50 | 8 | 27 | 90 | ⌀10 | 165 | 130 | 200 | 12 | 3.5 | 180 | 160x160 | 205 | 316 |
90L | 140 | 125 | 56 | ⌀24 | 50 | 8 | 27 | 90 | ⌀10 | 165 | 130 | 200 | 12 | 3.5 | 180 | 160x160 | 205 | 326 |
100L | 160 | 140 | 63 | ⌀28 | 60 | 8 | 31 | 100 | ⌀12 | 215 | 180 | 250 | 14.5 | 4 | 205 | 185x185 | 240 | 360 |
112M | 190 | 140 | 70 | ⌀28 | 60 | 8 | 31 | 112 | ⌀12 | 215 | 180 | 250 | 14.5 | 4 | 235 | 200x200 | 270 | 400 |
132S | 216 | 140 | 89 | ⌀38 | 80 | 10 | 41 | 132 | ⌀12 | 265 | 230 | 300 | 14.5 | 4 | 261 | 245x245 | 310 | 470 |
132M | 216 | 178 | 89 | ⌀38 | 80 | 10 | 41 | 132 | ⌀12 | 265 | 230 | 300 | 14.5 | 4 | 261 | 245 x24b | 310 | 470 |
160M | 254 | 210 | 108 | ⌀42 | 110 | 12 | 45 | 160 | ⌀14.5 | 300 | 250 | 350 | 18.5 | 5 | 320 | 320x320 | 450 | 640 |
160L | 254 | 254 | 108 | ⌀42 | 110 | 12 | 45 | 160 | ⌀14.5 | 300 | 250 | 350 | 18.5 | 5 | 320 | 320x320 | 450 | 680 |
180M | 279 | 241 | 121 | ⌀48 | 110 | 14 | 51.5 | 180 | ⌀14.5 | 300 | 255 | 350 | 18.5 | 5 | 355 | 360x360 | 500 | 790 |
180L | 279 | 279 | 121 | ⌀48 | 110 | 14 | 51.5 | 180 | ⌀14.5 | 300 | 250 | 350 | 18.5 | 5 | 355 | 360x360 | 500 | 930 |
Zhouyi es un fabricante y proveedor experimentado de motores asíncronos y se especializa en el diseño y la fabricación de motores industriales, reductores de velocidad y engranajes desde 1990. Con el proceso de fabricación de acuerdo con el estándar IEC, nuestra empresa se dedica a proporcionar los motores de inducción de CA de alta calidad con una variedad de selecciones de modelos y configuraciones para satisfacer sus necesidades específicas de los equipos y máquinas.
