This product has been discontinued and removed from our shelves.
Rectangular duct lines Ⅳ adds lockformers and flanges that are not included on duct lines II, allowing it to manufacture both TDF and TDC flanges. A Dobladora de Conductos is needed for TDF flange production, and a Máquina Insertadora de Esquinas is needed for TDC flange production. Our production line occupies less space, is easy to assemble or disassemble onsite, and increases productivity.

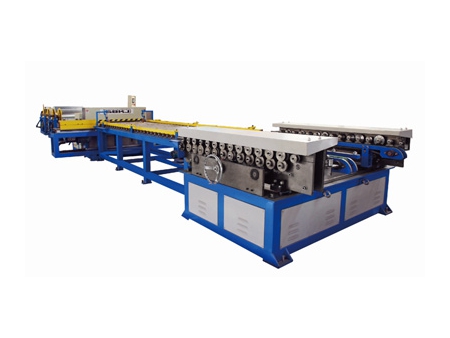

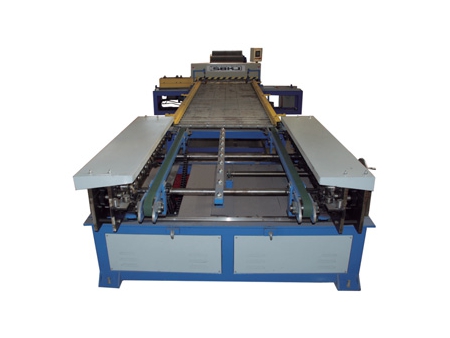

The duct line IV consists of the material compartment, Nervadora de Conductos, sheet shearing machine, and angle pressing machine.
Ventajas:The electronics are programmable, maximum feeding speed is 16m/min, length tolerance is ±0.5mm per meter, and diagonal length tolerance is ±0.8mm.

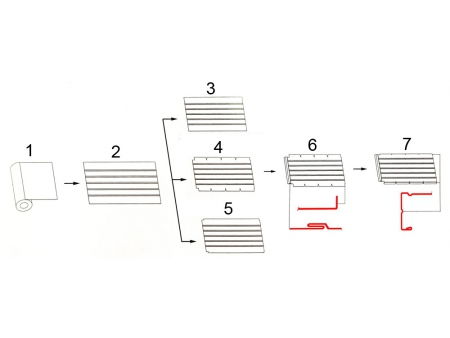

Flujo de trabajo:- Uncoiling
- Leveling&Bending Grooving
- Customized Cut-off
- Notched "V"and "口" and Shear for C&S or TDF Flange
- Notched "口" and Shear for C&S or TDF Flange
- Forming Pittsburgh lock
- Forming the Angle & TDF Fangle
| Type | SBAL-Ⅳ-1250 | SBAL-Ⅳ-1550 |
| Thickness | 0.5-1.2mm | 0.5-1.2mm |
| Max-width | 1250mm | 1550mm |
| Max-working speed | 16m/min | 16m/min |
| Coiler max-weight | 8000kg | 8000kg |
| Power | 19kw | 20kw |
| Weight | 10000Kg | 12000Kg |
| Dimension | 18000×3400×1500mm | 18000×3600×1500mm |
