Rectangular Duct Line Ⅵ

Solicite un presupuesto

Nosotros: http://ductworkmachinery.com.ar/2-5-rectangular-duct-line.html

This product has been discontinued and removed from our shelves.

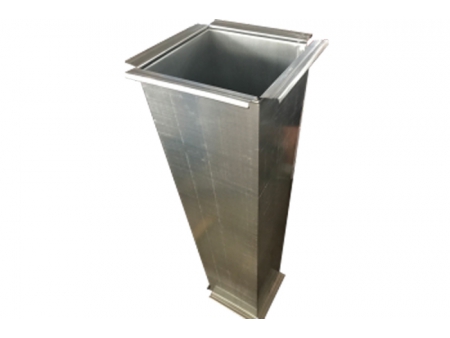

The function of rectangular duct lines VI is basically the same as that of rectangular duct line V. It can automatically complete uncoiling, leveling, beading, notching and punching, Pittsburgh lock forming, TDF flange forming and angle iron flange forming. The maximum feeding speed of duct line VI is 16 m/min, and the length tolerance is ±0.5 mm.

Ventajas:

Computer controlled electronics and servo-driven feeding platform greatly improve the production precision and operation stability.
Compact in structure, this duct line occupies a small area, which is suitable for small and medium-sized factories.
The duct line VI features a Transverse TDF flange former and an angle iron flange former, which are easily interchangeable and easy to operate.

Parámetros:

Model	Working thickness (mm)	Max-working speed(m/min)	Working width(mm)	Coiler Max-weight(kg)	Dimension(LxWxH)(mm)	Weight(kg)

SBAL-Ⅵ-1250	0.5-1.2	12	1250	8000	18000x3500x1500	15000
SBAL-Ⅵ-1550	0.5-1.2	12	1550	8000	18000x3800x1500	16000
