Discos diamantados con Soldadura Laser
Solicite un presupuesto
Los Discos Diamantados Soldados a Laser Joysun son productos de corte de alto desempeño que son diseñados para una variedad de materiales de albañilería y mampostería, como el concreto, blocks, piedra natural, mármol, loseta vitrificada y muchos más.

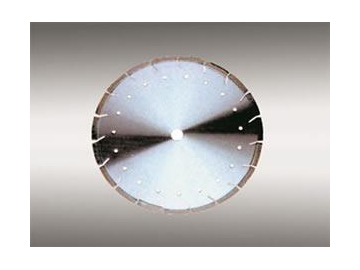

Discos Diamantados Soldados a Laser de Uso General
TAMAÑO (Diámetro x Mandril) | TAMAÑO (Diámetro x Mandril) | MAX RPM | Tamaño de Segmento | Cantidad de Segmento | PAQUETE ESTANDAR | PIEZA # |
4"x7/8" - 20 | 105 x 22.23-20.0 mm | 15,000 | 2.0 x 8/10 mm | 8 | 10 | 21001 |
4-1/2" x 7/8" - 20 | 115 x 22.23-20.0 mm | 13,300 | 2.0 x 8/10 mm | 9 | 10 | 21014 |
5"x7/8"- 20 | 125 x 22.23-20.0 mm | 12,000 | 2.2 x 8/10 mm | 10 | 10 | 21027 |
6"x7/8" | 150 x 22.23 mm | 10,100 | 2.2 x 8/10 mm | 12 | 10 | 21030 |
7"x 7/8" | 180 x 22.23 mm | 8,750 | 2.4 x 8/10 mm | 13 | 10 | 21043 |
8"x 7/8" | 200 x 22.23 mm | 7,650 | 2.4 x 8/10 mm | 14 | 10 | 21056 |
9"x 7/8" | 230 x 22.23mm | 6,600 | 2.6 x 8/10 mm | 16 | 10 | 21069 |
10"x 1" | 250 x 25.40 mm | 6,100 | 2.6 x 8/10/12/14 mm | 17-18 | 10 | 21072 |
12"x 2" - 1" | 300 x 50.00 - 25.40 mm | 5,100 | 3.0 x 8/10/12/14 mm | 20-21 | 10 | 21085 |
14"x 2" - 1" | 350 x 50.00 - 25.40 mm | 4,400 | 3.2 x 8/10/12/14 mm | 24 | 10 | 21098 |
16"x 2" - 1" | 400 x 50.00 - 25.40 mm | 3,900 | 3.4 x 8/10/12/14 mm | 28 | 10 | 21101 |
18"x 2" - 1" | 450 x 50.00 - 25.40 mm | 3,400 | 3.6 x 8/10/12/14 mm | 32 | 10 | 21114 |
20"x 2" - 1" | 500 x 50.00 - 25.30 mm | 3,100 | 3.8 x 8/10/12/14 mm | 36 | 10 | 21127 |
22"x 2" - 1" | 550 x 50.00 - 25.40 mm | 2,800 | 4.0 x 8/10/12/14 mm | 38 | 10 | 21130 |
24"x 2" - 1" | 600 x 50.00 - 25.40 mm | 2,600 | 4.2 x 8/10/12/14 mm | 42 | 10 | 21143 |

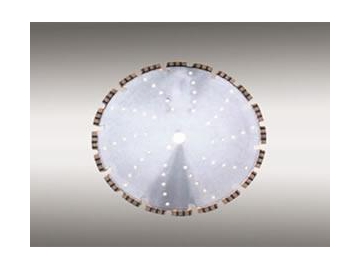

Discos Diamantados Soldados a Laser Turbo Segmentados
TAMAÑO (Diámetro x Mandril) | TAMAÑO (Diámetro x Mandril) | MAX RPM | Tamaño de Segmento | Cantidad de Segmento | PAQUETE ESTANDAR | PIEZA # |
12" x2" - 1" | 300 x 50.00 - 25.40 mm | 5,100 | 3.0 x 8/10/12/14 mm | 20-21 | 10 | 21156 |
14"x2" - 1" | 350 x 50.00 - 25.40 mm | 4,400 | 3.2 x 8/10/12/14 mm | 24 | 10 | 21169 |
16"x2" - 1" | 400 x 50.00 - 25.40 mm | 3,900 | 3.4 x 8/10/12/14 mm | 28 | 10 | 21172 |
18"x 2" - 1" | 450 x 50.00 - 25.40 mm | 3,400 | 3.6 x 8/10/12/14 mm | 32 | 10 | 21185 |
Discos Diamantados Soldados a Laser para Corte de Muros
TAMAÑO (Diámetro x Mandril) | TAMAÑO (Diámetro x Mandril) | MAX RPM | Tamaño de Segmento | Cantidad de Segmento | PAQUETE ESTANDAR | PIEZA # |
12"x2" - 1" | 300 x 50.00 - 25.40 mm | 5,100 | 3.0 x 8/10/12/14 mm | 20-21 | 10 | 21198 |
14"x 2" - 1" | 350 x 50.00 - 25.40 mm | 4,400 | 3.2 x 8/10/12/14 mm | 24 | 10 | 21201 |
16"x2" - 1" | 400 x 50.00 - 25.40 mm | 3,900 | 3.4 x 8/10/12/14 mm | 28 | 10 | 61211 |
18"x2" - 1" | 450 x 50.00 - 25.40 mm | 3,400 | 3.6 x 8/10/12/14 mm | 32 | 10 | 61224 |
Discos Diamantados Soldados a Laser para Corte de Asfalto
TAMAÑO (Diámetro x Mandril) | TAMAÑO (Diámetro x Mandril) | MAX RPM | Tamaño de Segmento | Cantidad de Segmento | PAQUETE ESTANDAR | PIEZA # |
12"x2" - 1" | 300 x 50.00 - 25.40 mm | 5,100 | 3.0 x 8/10/12/14 mm | 20-21 | 10 | 61237 |
14"x 2" - 1" | 350 x 50.00 - 25.40 mm | 4,400 | 3.2 x 8/10/12/14 mm | 24 | 10 | 61240 |
16"x2" - 1" | 400 x 50.00 - 25.40 mm | 3,900 | 3.4 x 8/10/12/14 mm | 28 | 10 | 61253 |
18"x2" - 1" | 450 x 50.00 - 25.40 mm | 3,400 | 3.6 x 8/10/12/14 mm | 32 | 10 | 61266 |
20"x 2" - 1" | 500 x 50.00 - 25.30 mm | 3,100 | 3.8 x 8/10/12/14 mm | 36 | 10 | 61279 |
Discos Diamantados Soldados a Laser de Segmento Profundo
TAMAÑO (Diámetro x Mandril) | TAMAÑO (Diámetro x Mandril) | MAX RPM | Tamaño de Segmento | Cantidad de Segmento | PAQUETE ESTANDAR | PIEZA # |
12"x2" - 1" | 300 x 50.00 - 25.40 mm | 5,100 | 3.0 x 8/10/12/14 mm | 20-21 | 10 | 61282 |
14"x 2" - 1" | 350 x 50.00 - 25.40 mm | 4,400 | 3.2 x 8/10/12/14 mm | 24 | 10 | 61295 |
16"x2" - 1" | 400 x 50.00 - 25.40 mm | 3,900 | 3.4 x 8/10/12/14 mm | 28 | 10 | 61308 |
18"x2" - 1" | 450 x 50.00 - 25.40 mm | 3,400 | 3.6 x 8/10/12/14 mm | 32 | 10 | 61411 |
20"x 2" - 1" | 500 x 50.00 - 25.30 mm | 3,100 | 3.8 x 8/10/12/14 mm | 36 | 10 | 61424 |
22"x2" - 1" | 550 x 50.00 - 25.40 mm | 2,800 | 4.0 x 8/10/12/14 mm | 38 | 10 | 61437 |
24"x2" - 1" | 600 x 50.00 - 25.40 mm | 2,600 | 4.2 x 8/10/12/14 mm | 42 | 10 | 61440 |
Discos Diamantados Soldados a Laser para Corte de Concreto
TAMAÑO (Diámetro x Mandril) | TAMAÑO (Diámetro x Mandril) | MAX RPM | Tamaño de Segmento | Cantidad de Segmento | PAQUETE ESTANDAR | PIEZA # |
4" x 7/8" - 20 | 105 x 22.23-20.0 mm | 15,000 | 2.0 x 8/10 mm | 8 | 10 | 61453 |
4-1/2" x 7/8" - 20 | 115 x 22.23-20.0 mm | 13,300 | 2.0 x 8/10 mm | 9 | 10 | 61466 |
5" x 7/8" - 20 | 125 x 22.23-20.0 mm | 12,000 | 2.2 x 8/10 mm | 10 | 10 | 61479 |
6" x 7/8" | 150 x 22.23 mm | 10,185 | 2.2 x 8/10 mm | 12 | 10 | 61482 |
7" x 7/8" | 180 x 22.23 mm | 8,730 | 2.4 x 8/10 mm | 13 | 10 | 61495 |
8" x 7/8" | 200 x 22.23 mm | 7,640 | 2.4 x 8/10 mm | 14 | 10 | 61508 |
9" x 7/8" | 230 x 22.23mm | 6,600 | 2.6 x 8/10 mm | 16 | 10 | 61511 |
10" x 1" | 250 x 25.40 mm | 6,100 | 2.6 x 8/10/12/14 mm | 17-18 | 10 | 21527 |
12" x 2" - 1" | 300 x 50.00 - 25.40 mm | 5,100 | 3.0 x 8/10/12/14 mm | 20-21 | 10 | 21530 |
14" x 2" - 1" | 350 x 50.00 - 25.40 mm | 4,400 | 3.2 x 8/10/12/14 mm | 24 | 10 | 21543 |
16" x 2" - 1" | 400 x 50.00 - 25.40 mm | 3,900 | 3.4 x 8/10/12/14 mm | 28 | 10 | 21556 |
18" x 2" - 1" | 450 x 50.00 - 25.40 mm | 3,400 | 3.6 x 8/10/12/14 mm | 32 | 10 | 21569 |
20" x 2" - 1" | 500 x 50.00 - 25.30 mm | 3,100 | 3.8 x 8/10/12/14 mm | 36 | 10 | 21572 |
22" x 2" - 1" | 550 x 50.00 - 25.40 mm | 2,800 | 4.0 x 8/10/12/14 mm | 38 | 10 | 21585 |
24" x 2" - 1" | 600 x 50.00 - 25.40 mm | 2,600 | 4.2 x 8/10/12/14 mm | 42 | 10 | 21598 |
Discos Diamantados Sin Soldadura
TAMAÑO (Diámetro x Mandril) | TAMAÑO (Diámetro x Mandril) | MAX RPM | Tamaño de Segmento | Cantidad de Segmento | PAQUETE ESTANDAR | PIEZA # |
10" x 1" | 250 x 25.40 mm | 6,100 | 2.6 x 8/10/12/14 mm | 17-18 | 10 | 21601 |
12" x 2" - 1" | 300 x 50.00 - 25.40 mm | 5,100 | 3.0 x 8/10/12/14 mm | 20-21 | 10 | 21614 |
14" x 2" - 1" | 350 x 50.00 - 25.40 mm | 4,400 | 3.2 x 8/10/12/14 mm | 24 | 10 | 21627 |
16" x 2" - 1" | 400 x 50.00 - 25.40 mm | 3,900 | 3.4 x 8/10/12/14 mm | 28 | 10 | 21630 |
18" x 2" - 1" | 450 x 50.00 - 25.40 mm | 3,400 | 3.6 x 8/10/12/14 mm | 32 | 10 | 21643 |
20" x 2" - 1" | 500 x 50.00 - 25.30 mm | 3,100 | 3.8 x 8/10/12/14 mm | 36 | 10 | 21656 |
Discos Diamantados Soldados a Laser Turbo Segmentados para Concreto
TAMAÑO (Diámetro x Mandril) | TAMAÑO (Diámetro x Mandril) | MAX RPM | Tamaño de Segmento | Cantidad de Segmento | PAQUETE ESTANDAR | PIEZA # |
4" x 7/8" - 20 | 105 x 22.23-20.0 mm | 15,000 | 2.0 x 8/10 mm | 8 | 10 | 21669 |
4-1/2" x 7/8" - 20 | 115 x 22.23-20.0 mm | 13,300 | 2.0 x 8/10 mm | 9 | 10 | 21672 |
5" x 7/8" - 20 | 125 x 22.23-20.0 mm | 12,000 | 2.2 x 8/10 mm | 10 | 10 | 21685 |
6" x 7/8" | 150 x 22.23 mm | 10,185 | 2.2 x 8/10 mm | 10 | 10 | 21698 |
7" x 7/8" | 180 x 22.23 mm | 8,730 | 2.4 x 8/10 mm | 13 | 10 | 21701 |
8" x 7/8" | 200 x 22.23 mm | 7,640 | 2.4 x 8/10 mm | 14 | 10 | 21714 |
9" x 7/8" | 230 x 22.23mm | 6,600 | 2.6 x 8/10 mm | 16 | 10 | 21727 |
10" x 1" | 250 x 25.40 mm | 6,100 | 2.6 x 8/10/12/14 mm | 17-18 | 10 | 21730 |
12" x 2" - 1" | 300 x 50.00 - 25.40 mm | 5,100 | 3.0 x 8/10/12/14 mm | 20-21 | 10 | 21743 |
14" x 2" - 1" | 350 x 50.00 - 25.40 mm | 4,400 | 3.2 x 8/10/12/14 mm | 24 | 10 | 21756 |
16" x 2" - 1" | 400 x 50.00 - 25.40 mm | 3,900 | 3.4 x 8/10/12/14 mm | 28 | 10 | 21769 |
18" x 2" - 1" | 450 x 50.00 - 25.40 mm | 3,400 | 3.6 x 8/10/12/14 mm | 32 | 10 | 21872 |
20" x 2" - 1" | 500 x 50.00 - 25.30 mm | 3,100 | 3.8 x 8/10/12/14 mm | 36 | 10 | 21885 |
22" x 2" - 1" | 550 x 50.00 - 25.40 mm | 2,800 | 4.0 x 8/10/12/14 mm | 38 | 10 | 21898 |
24" x 2" - 1" | 600 x 50.00 - 25.40 mm | 2,600 | 4.2 x 8/10/12/14 mm | 42 | 10 | 21901 |
Discos Diamantados Soldados a Laser en Forma-S para Concreto
TAMAÑO (Diámetro x Mandril) | TAMAÑO (Diámetro x Mandril) | MAX RPM | Tamaño de Segmento | Cantidad de Segmento | PAQUETE ESTANDAR | PIEZA # |
4" x 7/8" - 20 | 105 x 22.23-20.0 mm | 15,000 | 2.0 x 8/10 mm | 8 | 10 | 21914 |
4-1/2" x 7/8" - 20 | 115 x 22.23-20.0 mm | 13,300 | 2.0 x 8/10 mm | 9 | 10 | 21927 |
5" x 7/8" - 20 | 125 x 22.23-20.0 mm | 12,000 | 2.2 x 8/10 mm | 10 | 10 | 21930 |
6" x 7/8" | 150 x 22.23 mm | 10,185 | 2.2 x 8/10 mm | 12 | 10 | 21943 |
7" x 7/8" | 180 x 22.23 mm | 8,730 | 2.4 x 8/10 mm | 13 | 10 | 21956 |
8" x 7/8" | 200 x 22.23 mm | 7,640 | 2.4 x 8/10 mm | 14 | 10 | 21969 |
9" x 7/8" | 230 x 22.23mm | 6,600 | 2.6 x 8/10 mm | 16 | 10 | 21972 |
10" x 1" | 250 x 25.40 mm | 6,100 | 2.6 x 8/10/12/14 mm | 17-18 | 10 | 21985 |
12" x 2" - 1" | 300 x 50.00 - 25.40 mm | 5,100 | 3.0 x 8/10/12/14 mm | 20-21 | 10 | 21998 |
14" x 2" - 1" | 350 x 50.00 - 25.40 mm | 4,400 | 3.2 x 8/10/12/14 mm | 24 | 10 | 22001 |
16" x 2" - 1" | 400 x 50.00 - 25.40 mm | 3,900 | 3.4 x 8/10/12/14 mm | 28 | 10 | 22014 |
18" x 2" - 1" | 450 x 50.00 - 25.40 mm | 3,400 | 3.6 x 8/10/12/14 mm | 32 | 10 | 22027 |
20" x 2" - 1" | 500 x 50.00 - 25.30 mm | 3,100 | 3.8 x 8/10/12/14 mm | 36 | 10 | 22030 |
22" x 2" - 1" | 550 x 50.00 - 25.40 mm | 2,800 | 4.0 x 8/10/12/14 mm | 38 | 10 | 22043 |
24" x 2" - 1" | 600 x 50.00 - 25.40 mm | 2,600 | 4.2 x 8/10/12/14 mm | 42 | 10 | 22056 |
Discos Diamantados Soldados a Laser para Corte de Azulejo
TAMAÑO (Diámetro x Mandril) | TAMAÑO (Diámetro x Mandril) | MAX RPM | Tamaño de Segmento | Cantidad de Segmento | PAQUETE ESTANDAR | PIEZA # |
12" x 2" - 1" | 300 x 50.00 - 25.40 mm | 5,100 | 3.0 x 8/10/12/14 mm | 20-21 | 10 | 22069 |
14" x 2" - 1" | 350 x 50.00 - 25.40 mm | 4,400 | 3.2 x 8/10/12/14 mm | 24 | 10 | 22072 |
16" x 2" - 1" | 400 x 50.00 - 25.40 mm | 3,900 | 3.4 x 8/10/12/14 mm | 28 | 10 | 22085 |
18" x 2" - 1" | 450 x 50.00 - 25.40 mm | 3,400 | 3.6 x 8/10/12/14 mm | 32 | 10 | 22098 |
Discos Diamantados Soldados a Laser para Asfalto
TAMAÑO (Diámetro x Mandril) | TAMAÑO (Diámetro x Mandril) | MAX RPM | Tamaño de Segmento | Cantidad de Segmento | PAQUETE ESTANDAR | PIEZA # |
12" x 2" - 1" | 300 x 50.00 - 25.40 mm | 5,100 | 3.0 x 8/10/12/14 mm | 20-21 | 10 | 22101 |
14" x 2" - 1" | 350 x 50.00 - 25.40 mm | 4,400 | 3.2 x 8/10/12/14 mm | 24 | 10 | 22114 |
16" x 2" - 1" | 400 x 50.00 - 25.40 mm | 3,900 | 3.4 x 8/10/12/14 mm | 28 | 10 | 22127 |
18" x 2" - 1" | 450 x 50.00 - 25.40 mm | 3,400 | 3.6 x 8/10/12/14 mm | 32 | 10 | 22130 |
20" x 2" - 1" | 500 x 50.00 - 25.30 mm | 3,100 | 3.8 x 8/10/12/14 mm | 36 | 10 | 22143 |
Discos Diamantados Soldados a Laser para Hormigón
TAMAÑO (Diámetro x Mandril) | TAMAÑO (Diámetro x Mandril) | MAX RPM | Tamaño de Segmento | Cantidad de Segmento | PAQUETE ESTANDAR | PIEZA # |
12" x 2" - 1" | 300 x 50.00 - 25.40 mm | 5,100 | 3.0 x 8/10/12/14 mm | 20-21 | 10 | 22156 |
14" x 2" - 1" | 350 x 50.00 - 25.40 mm | 4,400 | 3.2 x 8/10/12/14 mm | 24 | 10 | 22169 |
16" x 2" - 1" | 400 x 50.00 - 25.40 mm | 3,900 | 3.4 x 8/10/12/14 mm | 28 | 10 | 22172 |
18" x 2" - 1" | 450 x 50.00 - 25.40 mm | 3,400 | 3.6 x 8/10/12/14 mm | 32 | 10 | 22185 |
20" x 2" - 1" | 500 x 50.00 - 25.30 mm | 3,100 | 3.8 x 8/10/12/14 mm | 36 | 10 | 22198 |
