Pernos y Tuercas para Tren de Rodaje; Pernos y Tuercas para la Cadena del Tren de Rodaje; Pernos y Tuercas para Cadena
Solicite un presupuesto

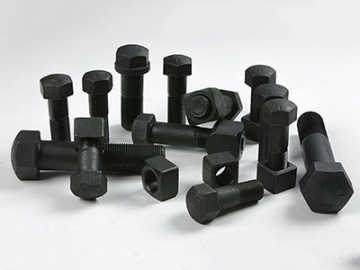

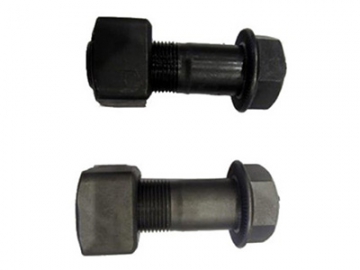

Los pernos o tornillos para tren de rodaje que HUIXIN MINDA ofrece, se fabrican con acero 40Cr con el proceso de recalcado en frío. Después de pasar por el tratamiento térmico, la dureza de los pernos puede alcanzar el grado 12.9, haciéndolos ideales para aplicaciones en donde se requiere una alta resistencia al desgaste. Nuestros pernos son adecuados trenes de rodaje de excavadoras y bulldozers, de marcas como tales como CAT, Komatsu, Hitachi, Kobelco, Hyundai, etc. Avalados por nuestros muchos años de experiencia en la fabricación y suministro de pernos, creemos que contamos con los recursos y conocimientos necesarios para ofrecerles pernos y tuercas de alta calidad fabricados según los dibujos o requerimientos que usted nos brinde.
Información básica
| Material | 40CrD |
| Dureza | HRC38-42 |
| Colores | Negro o amarillo |
| Técnica de fabricación | Fundición |
| Aplicación | Excavadoras, montacargas, bulldozer, etc. |
| Propiedades mecánicas | Grado 12.9 |
| Periodo de garantía | 2000 horas (vida útil de hasta 4000 horas ) |
| Certificaciones | ISO9001-9002 |
Aplicaciones

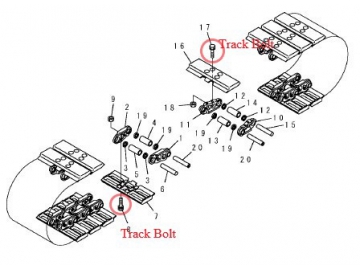

| Pernos para zapata de cadena & tren de rodaje | |||
| Diámetro | Longitud (mm) | Longitud (pulgadas) | No. de referencia |
| M12-1.0 | 40 | 1.57 | 571894, FT694 |
| M14-1.5 | 45 | 1.77 | 205-32-21210, OK 20 |
| M14-1.5 | 50 | 1.97 | 203-32-21220, 110-32-11410 |
| M14-1.5 | 56 | 2.2 | 203-32-21220 |
| M16-1.5 | 46 | 1.81 | 4I7538, HT245 |
| M16-1.5 | 50 | 1.97 | 205-32-51120 |
| M16-1.5 | 57 | 2.24 | 130-32-11213 |
| M16-1.5 | 65 | 2.56 | 130-82-07212 |
| M16-1.5 | 82 | 3.23 | 130-32-21252E |
| M18-1.5 | 59 | 2.32 | 135-32-11211, 79004259, FT981 |
| M18-1.5 | 64 | 2.52 | 140-80-37210 |
| M19-1.5 | 98 | 3.86 | 144-32-21342 |
| M20-1.5 (W) | 53 | 2.09 | 20Y-30-11210, KM1514 |
| M20-1.5 (B) | 55 | 2.17 | 9W3619, CR5437 |
| M20-1.5 (W) | 60 | 2.36 | 79035814, FT2110 |
| M20-1.5 (B) | 63 | 2.48 | 6Y0846, CR5496 |
| M20-1.5 | 65 | 2.56 | 154-32-21331, 154-32-21321 |
| M20-1.5 | 68.5 | 2.7 | 79004300, FT1100 |
| M20-1.5 | 105 | 4.13 | 14X-32-11350, KM2247 |
| M20-1.5 | 117 | 4.61 | 154-32-21260, KM799 |
| M22-2.0 (W) | 56 | 2.2 | 207-32-51210, KM1903 |
| M22-1.5 (B) | 65 | 2.56 | 6Y9024, CR5922 |
| M22-1.5 (W) | 70 | 2.76 | 79035318, FT2205 |
| M22-1.5 (B,W) | 75 | 2.95 | 8E6103, 143-4891 |
| M22-1.5 (W) | 75 | 2.95 | LH1063 |
| M24-2.0 (W) | 65 | 2.56 | 208-32-51210, KM1634 |
| M24-1.5 (B,W) | 67.5 | 2.66 | 1504741, CR6603 |
| M24-1.5 (W) | 72 | 2.83 | SI651 |
| M24-1.5 | 76.2 | 3 | 175-32-11210, 176-32-11210, KM378 |
| M24-2.0 | 125.5 | 4.94 | 175-32-41260 |
| M27-1.5 | 82 | 3.23 | 195-32-11210, KM 263 |
| M27-2.0 (B) | 93 | 3.66 | 195-32-41210, KM1150 |
| M27-1.5 | 140 | 5.51 | 195-32-41431, KM1085 |
| M27-2.0 | 145 | 5.71 | 195-32-23140 |
| M27-1.5 | 152 | 5.98 | 195-32-31241, KM651 |
| M30-2.0 (B) | 96 | 3.78 | 195-32-61210, KM1999 |
| M30-2.0 | 98 | 3.86 | D7611000N15 |
| M30-2.0 | 128 | 5.04 | 4314542 |
| M30-2.0 (B) | 167 | 6.57 | 195-32-61350, KM2000 |
| M33-2.0 (B) | 114 | 4.49 | 198-32-41330 |
| M33-2.0 | 145 | 5.71 | 3034712S |
| M33-2.0 | 162 | 6.38 | 3034712L |
| M33-2.0 (B) | 185 | 7.28 | 198-32-31340 |
| 7/16"-20 | 41 | 1.61 | 2B5484, IN1652 |
| 1/2"-20 | 38.1 | 1.5 | 8H7504 |
| 1/2"-20 (W) | 40.39 | 1.59 | R24688 |
| 1/2"-20 (B) | 43 | 1.69 | 70097287, AC231 |
| 1/2"-20 | 43.1 | 1.7 | 616191C1, IN 2760 |
| 1/2"-20 | 48 | 1.89 | 2A3223, IN1198 |
| 1/2"-20 (B) | 49 | 1.93 | 70644688, AC1119 |
| 9/16"-18 | 42 | 1.65 | 4K7038 |
| 9/16'-18 (B) | 49.3 | 1.94 | R15309, CA82 |
| 9/16"-18 | 51 | 2 | 7H3596, CR429 |
| 9/16"-18 | 54 | 2.13 | 616199C1, IN1199 |
| 9/16"-18 | 73 | 2.87 | 5P4684, CR3623 |
| 9/16"-18 | 76.2 | 3 | 5A3187 |
| 9/16"-18 (B) | 85 | 3.35 | 76015987, FT2728 |
| 5/8"-18 | 46 | 1.81 | 8U2703, CR3707 |
| 5/8"-18 | 50.8 | 2 | 7H3597S |
| 5/8"-18 | 54 | 2.13 | 7H3597L, CR1251 |
| 5/8"-18 | 57 | 2.24 | 5H8756, 6161207C1, CR330 |
| 5/8"-18 (B) | 57 | 2.24 | 9G3110, 70097282, AC226 |
| 5/8"-18 (B) | 66.7 | 2.63 | 3T8601, CR4357 |
| 5/8"-18 (B) | 82.55 | 3.25 | 9G8592, CR5573 |
| 5/8"-18 | 88.9 | 3.5 | 5A4104, 3P2274 |
| 5/8"-18 (B) | 90.5 | 3.56 | 3T8580 |
| 3/4"-16 | 56 | 2.2 | 1S1859, CR1105 |
| 3/4"-16 | 60.3 | 2.37 | 7H3598 |
| 3/4"-16 (B) | 60.4 | 2.38 | 6V1792, CR4441 |
| 3/4"-16 | 63 | 2.48 | 1S8804 |
| 3/4"-16 | 70 | 2.76 | 7F8619, CR331 |
| 3/4"-16 (B) | 75 | 2.95 | 1061642 |
| 3/4"-16 | 76.2 | 3 | 311348R2, CR3842 |
| 3/4"-16 (B) | 81 | 3.19 | 6V1793, CR4440 |
| 3/4"-16 (B) | 99 | 3.9 | 1070719, CR5444 |
| 3/4"-16 | 101.6 | 4 | 5A7524, ID1295 |
| 3/4"-16 (B) | 105 | 4.13 | 9S1838, CR3326 |
| 3/4"-16 (B) | 112 | 4.41 | 2P9670, CR3119 |
| 3/4"-16 (B) | 124.5 | 4.9 | 6T1441, CR4699 |
| 7/8"-14 (B) | 67 | 2.64 | 9M7444, 7H3599 |
| 7/8"-14 | 76 | 3 | 316910R1 |
| 7/8"-14 (B) | 85 | 3.35 | 7T2748 |
| 7/8"-14 (B) | 88.9 | 3.5 | 6V1723, CR4135 |
| 7/8"-14 (B) | 95.25 | 3.75 | 6V1724, CR4132 |
| 7/8"-14 (B) | 115 | 4.53 | 9W9058, CR4789 |
| 7/8"-14 (B) | 121 | 4.76 | 8S0395, CR2709 |
| 7/8"-14 (B) | 127 | 5 | 6V1725, CR4133 |
| 1"-14 (B) | 75.4 | 2.97 | 9M7445, 2M5657 |
| 1"-14 (B) | 84 | 3.31 | 3T6308, CR4029 |
| 1"-14 (B) | 90 | 3.54 | 6T2638, CR4670 |
| 1"-14 (B) | 101.6 | 4 | 6V1726, CR4036 |
| 1"-14 (B) | 110 | 4.33 | 6V1727, CR3858 |
| 1"-14 (B) | 123 | 4.84 | 7T2283, CR4669 |
| 1"-14 (B) | 141 | 5.55 | 8S1723, CR2669 |
| 1"-14 (B) | 148 | 5.83 | 6V1728, CR3859 |
| 1 1/8"-12 (B) | 95 | 3.74 | 7T1000 |
| 1 1/8"-12 (B) | 107 | 4.21 | 5P3868 |
| 1 1/8"-12 (B) | 134 | 5.28 | 7T0999 |
| 1 1/8"-12 (B) | 164 | 6.46 | 7T0998 |
| 1 3/8"-12 (B) | 110 | 4.33 | 6T8853 |
| 1 3/8"-12 (B) | 121 | 4.76 | 6I8648 |
| 1 3/8"-12 (B) | 153.1 | 6.03 | 6T8521, CR5640 |
| 1 3/8"-12 (B) | 184.1 | 7.25 | 6T8520, CR5639 |
| Pernos para rodillo inferior/rueda guía | |||
| Diámetro | Longitud (mm) | Longitud (pulgadas) | No.de referencia |
| 7/8"-9 (B) | 87 | 3.43 | 6T1140, CR4520 |
| 1"-8 (B) | 98.5 | 3.88 | 6T1139 |
| 1 1/8"-7 (B) | 139.7 | 5.5 | 9W4480 |
| 1 1/4"-7 (B) | 114.3 | 4.5 | 9W7269 |
| 1 1/4"-7 (B) | 177.8 | 7 | 9W4488 |

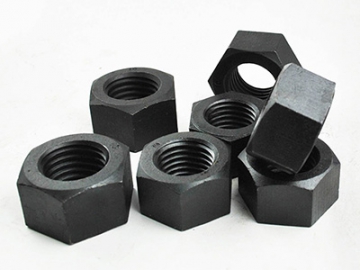

| Tuercas para tren de rodaje | |||
| Diámetro | W.A.F. | Espesor | No. referencia |
| M12-1.0 | 19 | 15 | 571946, FT887 |
| M14-1.5 | 22 | 14 | |
| M16-1.5 | 24 | 16 | 5I6125 |
| M18-1.5 | 27 | 18 | 79039445, FT982 |
| M20-1.5 | 30 | 27 | 093-0321 |
| M20-1.5 | 30 | 25 | FT1101 |
| M20-1.5 | 30 | 21 | 9W3361, 79035816, FT2111 |
| M22-1.5 | 32 | 22 | 9W4381, CR5923 |
| M24-1.5 | 35 | 24 | 178-32-11220, KM1491 |
| M24-1.5 | 33 | 29 | 4295785 |
| M24-1.5 | 35 | 24 | SI652 |
| M24-1.5 | 33 | 23 | 150-4742 |
| M27-1.5 | 41 | 41 | 195-32-11221, KM264 |
| M27-2.0 | 41 | 35 | 195-32-41220, KM1151 |
| M30-2.0 | 46 | 35.5 | 4281007 |
| M30-2.0 | 46 | 38 | 195-32-61220, KM1998 |
| M33-2.0 | 50 | 42 | 198-32-31220, KM2029 |
| M33-2.0 | 46 | 40 | 4189671 |
| 7/16"-20 | 19 | 15 | 7K1706, 2B5483, CR2003 |
| 1/2"-20 | 19 | 15 | 6S3419, FT888 |
| 9/16"-18 | 22 | 19 | 7K2017, CR1968 |
| 5/8"-18 | 25 | 19 | 1M1408, CR1250 |
| 3/4"-16 | 28 | 19 | 1S1860, CR1967 |
| 7/8"-14 | 33 | 23 | 2S2140, CR1969 |
| 7/8"-14 | 33 | 35 | 7G6442, CR4136 |
| 7/8"-14 | 32 | 24 | 7T9825, CR4249 |
| 1"-14 | 38 | 25 | 1S6421, CR1970 |
| 1"-14 | 38 | 39 | 7G0343, CR4037 |
| 1"-14 | 38.1 | 25.5 | 2V0250 |
| 1"-14 | 38.1 | 25.5 | 594424, CR3431 |
| 1 1/8"-12 | 42 | 44 | 5P8221, CR3835 |
| 1 1/8"-12 | 54 | 45 | 3T6292, CR5638 |
| M12-1.0 | 19 | 15 | 01803-01218 |
| M14-1.5 | 22 | 20 | 01803-01420 |
| M16-1.5 | 24 | 19 | 01803-01622 |
| M18-1.5 | 27 | 21.5 | 01803-01824, 135-32-11221, KM 382 |
| M20-1.5 | 30 | 24 | 01803-02026 |
| M22-1.5 | 32 | 28.5 | 01803-02228, KM226 |
| M22-2.0 | 32 | 22 | 207-32-51220 |
| M24-1.5 | 36 | 30 | 01803-02430, KM228 |
| M24-2.0 | 36 | 24 | 208-32-51220, KM1635 |
| M27-2.0 | 41 | 32 | 195-27-33141, KM1397 |
| 1/2"-20 | 19 | 15 | 8H5724, CR4896 |
| 9/16"-18 | 22 | 15.5 | 7H3606 |
| 5/8"-18 | 24 | 19 | 7H3607, AC228 |
| 3/4"-16 | 28 | 19 | 7H3608, CR787 |
| 7/8"-14 | 33 | 23 | 7H3609, CR1001 |
| 1"-14 | 38 | 25.5 | 2M5656, CR1270 |
| 1 1/8"-12 | 42 | 24.6 | 3S1356, CR5845 |
