Inductor de potencia SMD, 6.5mm 7.5mm blindado
Solicite un presupuesto

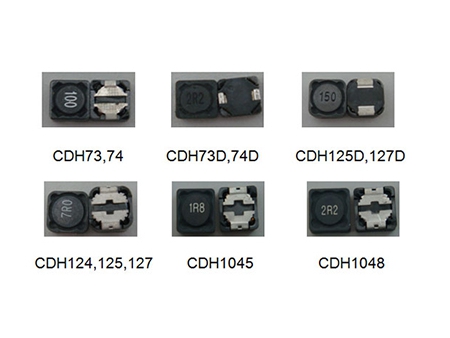

Este es el inductor de potencia 6.5mm 7.5mm blindado de forma cuadrada. Esta estructura le ayuda a ahorrar mucho espacio.
Aplicaciones
Fuente de alimentación para VTR, equipos de ofimática, cámaras digitales, LCD TV set, notebook PC, equipos de radiofrecuencia, portable, convertidores DC/DC, etc.
Modelo | Amax | A1max | Bmax | C | D | E | F | G | H | I | Cifra |
CDRH62 | 6.5 | 6.2 | 3.0 | 1.50 | 6.0 | 2.8 | -- | 2.50 | 4.00 | 8.10 | 1 |
CDRH64 | 6.5 | 6.2 | 5.0 | 1.50 | 6.0 | 2.8 | -- | 2.50 | 4.00 | 8.10 | 1 |
CDRH73 | 7.5 | --- | 3.40 | 1.80 | 7.20 | 5.4 | 1.5 | 2.20 | 4.80 | 7.80 | 2 |
CDRH74 | 7.5 | --- | 4.50 | 1.80 | 7.20 | 5.4 | 1.5 | 2.20 | 4.80 | 7.80 | 2 |
Serie: CDRH 62/64/73/74
Número de serie | Inductancia (uH)(※) | Tolerancia | Rdc(ohm)Max | Tensión nominal Amp(※) |
CDRH73/74 | 1.0 | M | 403/20.0m | 4.0/5.0 |
CDRH74 | 1.5 | M | 20.8m | 4.60 |
CDRH73/74 | 2.2 | M | 553/24.7 m | 3.5/4.4 |
CDRH62 | 33 | M | 68m | 1.95 |
CDRH74 | 3.9 | M | 32.5m | 3.30 |
CDRH62/73/74 | 4.7 | M | 80/43/39m | 1.65/2.7/3.05 |
CDRH62 | 5.6 | M | 96m | 1.40 |
CDRH62/74 | 6.8 | M | 100/45.5m | 1.33/2.90 |
CDRH62 | 8.2 | M | 102m | 1.14 |
CDRH62/64/73/74 | 10.0 | M | 150/120/119/65m | 1.10/1.35/1.7/2.0 |
CDRH62/64/73/74 | 12.0 | M | 200/130/136/71m | 1.0/1.22/1.6/1.9 |
CDRH62/64/73/74 | 15.0 | M | 230/180/124/78m | 0.9/1.1/1.4/1.7 |
CDRH62/64/73/74 | 18.0 | M | 270/240/194/110m | 0.8/1.02/13/1.6 |
CDRH62/64/73/74 | 22.0 | M | 340/270/195/126m | 0.74/0.91/1.2/1.4 |
CDRH62/64/73/74 | 27.0 | M | 380/300/228/140m | 0.66/0.82/1.0/1.3 |
CDRH62/64/73/74 | 33.0 | M | 450/330/260/177m | 0.59/0.74/0.97/1.1 |
CDRH62/64/73/74 | 39.0 | M | 490/370/270/226m | 0.54/0.69/0.94/1.0 |
CDRH62/64/73/74 | 47.0 | M | 690/520/310/260m | 0.5/0.62/0.9/0.9 |
CDRH62/64/73/74 | 56.0 | M | 780/560/510/289m | 0.46/0.58/0.8/0.82 |
CDRH62/64/73/74 | 68.0 | M | 1.07/0.63/0.59/034 | 0.42/0.51/0.72/0.78 |
CDRH62/64/73/74 | 82.0 | M | 1.21/0.71/0.68/036 | 0.38/0.46/0.6/0.7 |
CDRH62/64/73/74 | 100.0 | M | 1.39/1.03/0.73/0.4 | 1.1/0.83/0.54/0.68 |
CDRH62/64/73/74 | 120.0 | M | 1.9/1.15/0.91/0.55 | 0.31/0.38/0.51/0.65 |
CDRH62/64/73/74 | 150.0 | M | 2.18/1.68/1.04/0.69 | 0.28/0.35/0.44/0.59 |
CDRH62/64/73/74 | 180.0 | M | 2.77/1.87/1.24/0.77 | 0.26/0.32/0.38/0.57 |
CDRH62/64/73/74 | 220.0 | M | 3.12/2.08/1.69/1.24 | 0.23/0.29/0.35/0.47 |
CDRH62/64/73/74 | 270.0 | M | 438/237/1.95/130 | 0.22/0.26/0.34/0.45 |
CDRH62/64/73/74 | 330.0 | M | 4.94/2.67/2.08/1.52 | 0.19/0.23/0.30/0.43 |
CDRH64/73/74 | 390.0 | M | 2.94/3.12/1.77 | 0.22/0.28/0.375 |
CDRH64/73/74 | 470.0 | M | 3.93/3.64/2.60 | 0.2/0.26/0.33 |
CDRH64/73/74 | 560.0 | M | 5.43/4.16/2.80 | 0.18/0.25/0.29 |
CDRH64 | 680.0 | M | 7.32 | 0.17 |
CDRH64/74 | 820.0 | M | 8.24/3.25 | 0.15/0.24 |
CDRH64 | 1000.0 | M | 9.26 | 0.14 |
※ La tensión nominal máxima es la corriente continua (DC) que puede soportar una DC superimpuesta así como el aumento de temperatura.
※ Prueba de inductancia Fr. 100KHz 100mA(HP 4277A) a 20℃(L<10uH)
Prueba de inductancia Fr. 1.0KHz 100mA(HP 4277A) a 20℃(L>10uH)
※ En esta tabla no se incluye la totalidad de las especificaciones, con lo que puede contactarnos para más información.

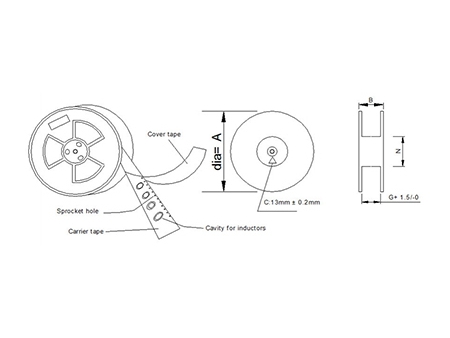

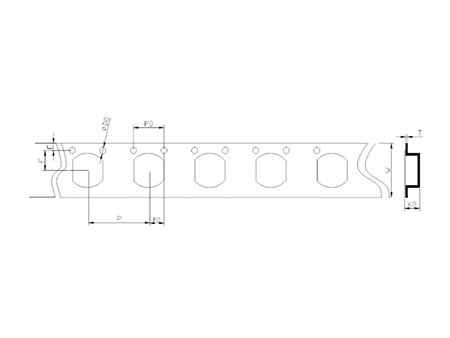

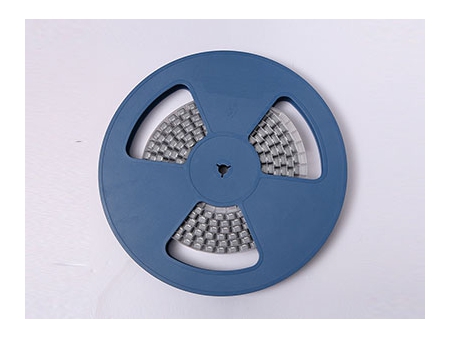

Embalaje del inductor de potencia 6.5mm 7.5mm blindadoDimensiones de la cinta y el rodillo:(unidad:mm)
Tipo de embalaje | Tamaño rodillo(mm) | Tamaño cinta(mm) | Cant, Pc/rod. | |||||||||||
A | B | G | N | E | F | D0 | P | P0 | P2 | W | T | K0 | ||
LSMT-01 | 178 | 11 | 8.5 | 60 | 1.75 | 3.5 | 1.5 | 4 | 4 | 2 | 8 | 0.25 | 2.1 | 2000 |
2 | 178 | 15 | 12.5 | 60 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.3 | 1.7 | 1000 |
3 | 178 | 15 | 12.5 | 60 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.3 | 2.1 | 1000 |
4 | 330 | 17 | 12.5 | 100 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.35 | 3 | 2000 |
5 | 330 | 17 | 12.5 | 100 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.35 | 2.4 | 2000 |
6 | 330 | 21 | 16.5 | 100 | 1.75 | 7.5 | 1.5 | 12 | 4 | 2 | 16 | 0.35 | 5.5 | 2000 |
7 | 330 | 21 | 16.5 | 100 | 1.75 | 7.5 | 1.5 | 12 | 4 | 2 | 16 | 0.3 | 3.5 | 1500 |
8 | 330 | 21 | 16.5 | 100 | 1.75 | 11.5 | 1.5 | 12 | 4 | 2 | 24 | 0.4 | 5.9 | 1000 |
9 | 330 | 21 | 16.5 | 100 | 1.75 | 7.5 | 1.5 | 12 | 4 | 2 | 16 | 0.3 | 4 | 1000 |
10 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 4.2 | 1000 |
11 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 4.8 | 500 |
12 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 5.2 | 500 |
13 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 6 | 500 |
14 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 8.2 | 500 |
