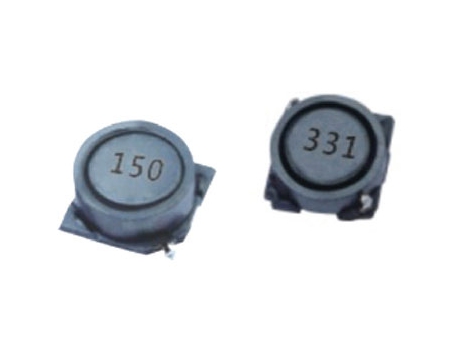

Inductor de potencia SMD, 3.0mm 4.0mm 5.2mm 7mm
El inductor de potencia SMD 3.0mm 4.0mm 5.2mm 7mm, es un inductor de alta potencia, disponible en diferentes tamaños, véase 3.0mm,4.0mm,5.2mm y 7mm.
Aplicaciones
Fuente de alimentación para VTR, equipos de ofimática, cámaras digitales, LCD TV set, notebook PC, equipos de radiofrecuencia, convertidores AC/DC, etc

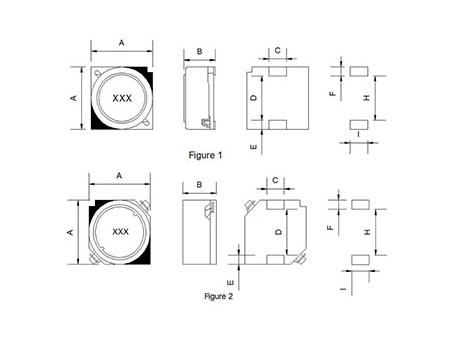

| Modelo | Amax | Bmax | C | D | E | F | H | I | Cifra |
| BF6028 | 6.20 | 3.00 | 2.0 | 3.0 | 1.50 | 2.00 | 2.50 | 2.50 | 1 |
| BF7025 | 7.20 | 2.80 | 2.0 | 4.0 | 1.50 | 2.00 | 3.50 | 2.50 | 2 |
| BF7032 | 7.20 | 3.40 | 2.0 | 4.0 | 1.50 | 2.00 | 3.50 | 2.50 | 2 |
| BF7045 | 7.20 | 4.80 | 2.0 | 4.0 | 2.00 | 2.50 | 3.50 | 2.50 | 2 |
| BF1045 | 10.40 | 4.80 | 3.0 | 6.0 | 2.00 | 2.50 | 5.50 | 3.50 | 2 |

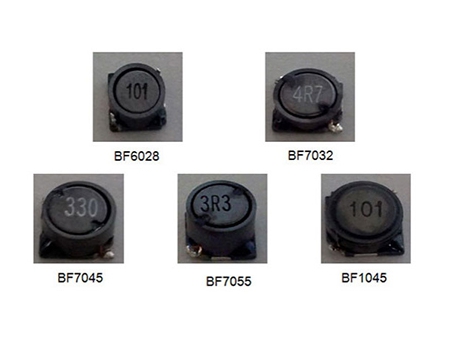

Serie: BF6028/7025/7032/7045/1045
| Número de serie | Inductancia (uH) (※) | Tolerancia | Rdc (ohm)Max | Tensión nominal Amp(※) |
| BF7032/7045 | 1.0 | M | 13/15m | 3.15/3.0 |
| BF6028 | 1.2 | M | 21m | 2.25 |
| BF7025/7032 | 1.5 | M | 22/17m | 2.50/2.88 |
| BF7025/7045 | 1.8 | M | 26/18m | 2.3Z2.6 |
| BF7032/7045 | 2.2 | M | 21/20m | 2.7Z2.4 |
| BF6028/7025 | 2.5 | M | 24/30m | 1.8/2.0 |
| BF7025 | 3.3 | M | 35m | 1.7 |
| BF6028 | 3.9 | M | 34m | 1.38 |
| BF6028/7025/7032/7045 | 4.7 | M | 42/46/47/33m | 1.3/1.3/2.0/2.0 |
| BF6028 | 5.6 | M | 49m | 1.1 |
| BF6028/7025/7032 | 6.8 | M | 65/60/57m | 1.0/1.1/1.8 |
| BF6028/7025/7032/7045/1045 | 10.0 | M | 94/90/69/52/47m | 0.81/1.05/1.35/1.7/2.5 |
| BF7025/7032/7045 | 12.0 | M | 107/78/58m | 0.85/1.25/1.55 |
| BF6028/7025/7032/7045/1045 | 15.0 | M | 124/146/101/70/62m | 0.7/0.78/1.1/1.4/2.2 |
| BF7025/7032/7045 | 18.0 | M | 163/135/78m | 0.68/1.0/1.3 |
| BF6028/7025/7032/7045/1045 | 22.0 | M | 182/179/156/86/77m | 0.55/0.63/0.9/1.2/1.9 |
| BF7025/7032/7045 | 27.0 | M | 231/182/lllm | 0.58/0.85/1.1 |
| BF6028/7025/7032/7045/1045 | 33.0 | M | 254/273/208/125/105m | 0.45/0.52/0.75/1.03/1.7 |
| BF7025/7032/7045 | 39.0 | M | 309/234/137m | 0.48/0.68/0.93 |
| BF6028/7025/7032/7045/1045 | 47.0 | M | 338/364/299/195/130m | 0.35/0.46/0.60/0.85/1.5 |
| BF7025/7032/7045 | 56.0 | M | 403/332/208m | 0.38/0.56/0.75 |
| BF6028/7025/7032/7045/1045 | 68.0 | M | 507/507/436/254/182m | 0.32/0.36/0.5/0.68/1.3 |
| BF7025/7032/7045 | 82.0 | M | 611/514/273m | 0.33/0.46/0.6 |
| BF6028/7025/7032/7045/1045 | 100.0 | M | 897/754/592/319/260m | 0.25/0.31/0.42/0.53/1.0 |
| BF7025/7032/7045 | 120. | M | 0.86/0.75/0.43 | 0.29/0.4/0.45 |
| BF6028/7025/7032/7045/1045 | 150.0 | M | 1.17/1.12/0.88/0.5/0.46 | 0.22/0.26/0.38/0.4/0.79 |
| BF7025/7032/7045 | 180.0 | M | 1.29/0.98/0.72 | 0.23/0.36/0.38 |
| BF6028/7025/7032/7045/1045 | 220.0 | M | 1.56/1.69/1.5/0.82/0.61 | 0.19/0.21/0.32/033/0.65 |
| BF7025/7032/7045 | 270.0 | M | 2.25/1.69/0.9 | 0.18/0.29/0.3 |
| BF6028/7025/7032/7045/1045 | 330.0 | M | 2.44/2.6/1.95/1.01/0.88 | 0.15/0.17/0.26/0.27/0.54 |
| BF7025/7032/7045 | 390.0 | M | 2.93/2.25/1.37 | 0.15/0.24/0.26 |
| BF6028/7025/7032/7045/1045 | 470.0 | M | 3.38/3.77/2.6/1.56/1.34 | 0.13/0.14/0.22/0.25/0.47 |
| BF7025/7032/7045 | 560.0 | M | 4.16/3.62/1.76 | 0.13/0.20/0.23 |
| BF6028/7025/7032/7045/1045 | 680.0 | M | 4.55/4.68/4.16/2.86/2.08 | 0.1/0.12/0.18/0.21/0.38 |
| BF7025/7032/7045 | 820.0 | M | 6.24/5.46/3.25 | 0.11/0.16/0.19 |
| BF6028/7025/7032/7045/1045 | 1000.0 | M | 7.02/7.41/6.37/3.77/3.64 | 0.08/0.1/0.15/0.17/0.29 |
※ La tensión nominal maxima es la corriente continua (DC) que puede soportar una DC superimpuesta así como el aumento de temperatura.
※ Prueba de inductancia Fr. 100KHz 100mA(HP 4277A) a 20℃(L<10uH)
Prueba de inductancia Fr. 1.0KHz 100mA(HP 4277A) a 20℃(L>10uH)
※ En esta tabla no se incluye la totalidad de las especificaciones, con lo que puede contactarnos para más información.

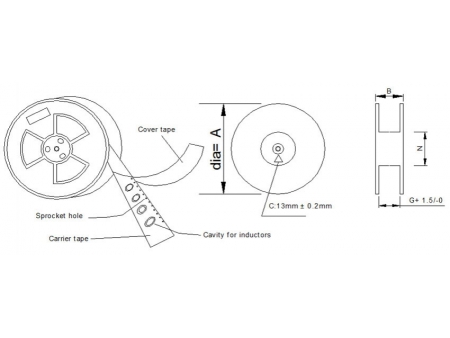

Embalaje del inductor de potencia SMDDimensiones de la cinta y el rodillo:(unidad:mm)
| Tipo de embalaje | Tamaño rodillo(mm) | Tamaño cinta(mm) | Cant., Pc./rod. | |||||||||||
| A | B | G | N | E | F | D0 | P | P0 | P2 | W | T | K0 | ||
| LSMT-01 | 178 | 11 | 8.5 | 60 | 1.75 | 3.5 | 1.5 | 4 | 4 | 2 | 8 | 0.25 | 2.1 | 2000 |
| 2 | 178 | 15 | 12.5 | 60 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.3 | 1.7 | 1000 |
| 3 | 178 | 15 | 12.5 | 60 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.3 | 2.1 | 1000 |
| 4 | 330 | 17 | 12.5 | 100 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.35 | 3 | 2000 |
| 5 | 330 | 17 | 12.5 | 100 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.35 | 2.4 | 2000 |
| 6 | 330 | 21 | 16.5 | 100 | 1.75 | 7.5 | 1.5 | 12 | 4 | 2 | 16 | 0.35 | 5.5 | 2000 |
| 7 | 330 | 21 | 16.5 | 100 | 1.75 | 7.5 | 1.5 | 12 | 4 | 2 | 16 | 0.3 | 3.5 | 1500 |
| 8 | 330 | 21 | 16.5 | 100 | 1.75 | 11.5 | 1.5 | 12 | 4 | 2 | 24 | 0.4 | 5.9 | 1000 |
| 9 | 330 | 21 | 16.5 | 100 | 1.75 | 7.5 | 1.5 | 12 | 4 | 2 | 16 | 0.3 | 4 | 1000 |
| 10 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 4.2 | 1000 |
| 11 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 4.8 | 500 |
| 12 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 5.2 | 500 |
| 13 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 6 | 500 |
| 14 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.3 | 8.2 | 500 |
** En la lista no se muestran todos los tipos de embalaje, ya que los productos se embalan en función de cada producto para su transporte. Por lo que el embalaje no es adecuado para los modelos de la lista.**
Además de los inductores de potencia anteriormente mencionados, a continuación se muestran más tipos de inductores que pueden interesarle. Los 30 años de experiencia de la empresa en la fabricación de componentes electrónicos para placas de circuito impreso, como resistores, transformadores eléctricos y fusibles, además de los productos hechos a medida de las necesidades de los clientes.
