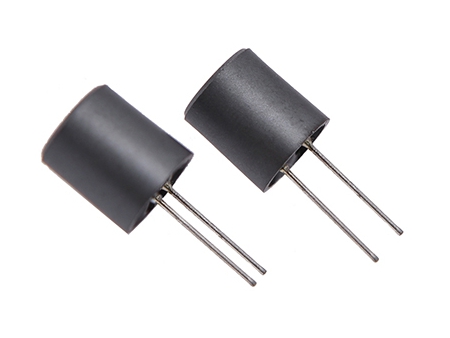

La inductancia fija radial posee dos patas de plomo en un lado de la estructura, facilitando su instalación vertical en la placa de circuito impreso.

Aplicaciones
Televisiones, VCR, equipos de ofimática, ordenadores, y demás equipos electrónicos.

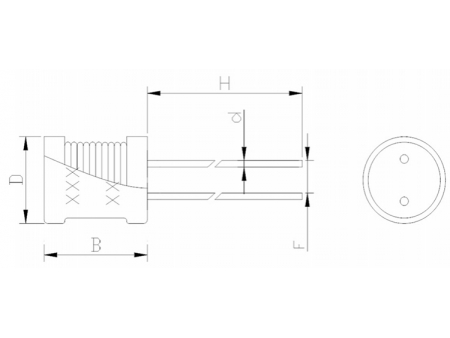

Plano dimensional

Formas y dimensiones / (Unidad:mm)

Modelo	D±1	Bmax	F±0.5	d±0.1	H
LGB-X/S0406	4.5	8	2.5	0.5	10min
LGB-X/S0507	5.5	9	2.5	0.6
LGB-X/S0608	6.5	10	3.0
LGB-X/S0810	8.5	12	5.0
LGB-X/S0912	9.5	14	5.0	0.8
LGB-X/S1012	10.5	15	5.0
LGB-X/S1415	14.5	17	7.5

Para los tamaños especiales podemos fabricar inductores a medida.

Parámetros
Características de los modelos LGB/ LGB-X(S) 0406

Número de serie	L (μH)	TOL	Qmin	Fr ( MHz)	SRF (MHz)	Rdc (Ω)	Idc (mA)
LGB-S/X0406-1R0M	1.0	±20%	80	7.96	200	0.10	1400
LGB-S/X0406-1R2M	1.2		70		170	0.13	1200
LGB-S/X0406-1R5M	1.5		70		140	0.15	1200
LGB-S/X0406-1R8M	1.8		70		130	0.17	1100
LGB-S/X0406-2R2M	2.2		70		120	0.20	1100
LGB-S/X0406-2R7M	2.7		70		110	0.22	1000
LGB-S/X0406-3R3M	3.3		70		90	0.24	1000
LGB-S/X0406-3R9M	3.9		70		70	0.26	1000
LGB-S/X0406-4R7M	4.7		70		55	0.28	800
LGB-S/X0406-5R6M	5.6		70		40	0.30	800
LGB-S/X0406-6R8M	6.8		70		35	0.35	800
LGB-S/X0406-8R2M	8.2		65		30	0.35	700
LGB-S/X0406-100K	10	±10%	65	2.52	25	0.46	650
LGB-S/X0406-120K	12		65		20	0.48	600
LGB-S/X0406-150K	15		65		15	0.55	500
LGB-S/X0406-180K	18		65		15	0.65	500
LGB-S/X0406-220K	22		60		14	0.72	400
LGB-S/X0406-270K	27		60		13	0.78	400
LGB-S/X0406-330K	33		60		12	0.87	400
LGB-S/X0406-390K	39		60		11	0.90	400
LGB-S/X0406-470K	47		58		10	0.98	320
LGB-S/X0406-560K	56		55		9.0	1.50	300
LGB-S/X0406-680K	68		55		8.5	1.90	300
LGB-S/X0406-820K	82		53		8.0	2.50	300
LGB-S/X0406-101K	100	±10%	50	0.796	7.0	3.00	200
LGB-S/X0406-121K	120		50		6.3	3.80	200
LGB-S/X0406-151K	150		50		5.7	4.50	200
LGB-S/X0406-181K	180		50		5.3	5.00	200
LGB-S/X0406-221K	220		50		5.0	5.80	200
LGB-S/X0406-271K	270		50		4.5	6.50	150
LGB-S/X0406-331K	330		50		4.0	7.00	150
LGB-S/X0406-391k	390		50		3.8	7.70	150
LGB-S/X0406-471k	470		50		3.5	8.00	120
LGB-S/X0406-561k	560		50		3.2	8.50	120
LGB-S/X0406-681k	680		50		3.0	9.50	120
LGB-S/X0406-821k	820		50		2.8	15.0	100
LGB-S/X0406-102K	1000	±10%	50	0.252	2.5	17.0	100
LGB-S/X0406-122K	1200		50		2.3	20.0	80
LGB-S/X0406-152K	1500		50		2.1	22.0	80
LGB-S/X0406-182K	1800		50		1.8	25.0	70
LGB-S/X0406-222K	2200		50		1.6	26.0	60
LGB-S/X0406-272K	2700		45		1.36	40.0	40
LGB-S/X0406-332K	3300		45		1.27	50.0	30
LGB-S/X0406-392K	3900		45		1.20	55.0	30
LGB-S/X0406-472K	4700		45		1.06	60.0	30
LGB-S/X0406-562K	5600		45		1.02	65.0	30
LGB-S/X0406-682K	6800		45		0.96	72.0	30
LGB-S/X0406-822K	8200		45		0.93	80.0	20

Características de los modelos LGB/ LGB-X(S) 0507

Número de serie	L (μH)	TOL	Qmin	Fr ((MHz)	SRF (MHz)	Rdc (Ω)	Idc (mA)
LGB-S/X0507-1R0M	1.0	±20%	80	7.96	120	0.02	3500
LGB-S/X0507-1R2M	1.2		70		100	0.02	3100
LGB-S/X0507-1R5M	1.5		70		90	0.02	3000
LGB-S/X0507-1R8M	1.8		70		70	0.02	2800
LGB-S/X0507-2R2M	2.2		70		55	0.03	2500
LGB-S/X0507-2R7M	2.7		70		50	0.03	2200
LGB-S/X0507-3R3M	3.3		70		50	0.04	2000
LGB-S/X0507-3R9M	3.9		70		35	0.04	1900
LGB-S/X0507-4R7M	4.7		70		30	0.05	1800
LGB-S/X0507-5R6M	5.6		70		30	0.05	1700
LGB-S/X0507-RR8M	6.8		70		25	0.06	1300
LGB-S/X0507-8R2M	8.2		65		25	0.06	1100
LGB-S/X0507-100K	10	±10%	65	2.52	22	0.08	1000
LGB-S/X0507-120K	12		65		20	0.10	950
LGB-S/X0507-150K	15		65		16	0.11	900
LGB-S/X0507-180K	18		50		14	0.11	800
LGB-S/X0507-220K	22		50		14	0.12	600
LGB-S/X0507-270K	27		50		12	0.14	550
LGB-S/X0507-330K	33		50		10	0.16	500
LGB-S/X0507-390K	39		45		9.0	0.18	500
LGB-S/X0507-470K	47		45		9.0	0.20	450
LGB-S/X0507-560K	56		35		8.0	0.22	450
LGB-S/X0507-680K	68		35		8.0	0.30	400
LGB-S/X0507-820K	82		35		7.0	0.34	400
LGB-S/X0507-101K	100	±10%	30	0.796	6.0	0.36	350
LGB-S/X0507-121K	120		30		5.5	0.44	300
LGB-S/X0507-151K	150		30		4.5	0.52	300
LGB-S/X0507-181K	180		30		3.5	0.65	250
LGB-S/X0507-221K	220		25		4.0	0.75	240
LGB-S/X0507-271K	270		25		3.5	1.00	200
LGB-S/X0507-331K	330		25		3.0	1.3	180
LGB-S/X0507-391k	390		25		2.7	1.4	160
LGB-S/X0507-471k	470		25		2.5	1.6	160
LGB-S/X0507-561k	560		25		2.4	2.0	120
LGB-S/X0507-681k	680		25		2.2	2.3	140
LGB-S/X0507-821k	820		25		2.0	2.7	130
LGB-S/X0507-102K	1000	±10%	50	0.252	2.2	3.1	120
LGB-S/X0507-122K	1200		50		1.5	4.6	110
LGB-S/X0507-152K	1500		50		1.3	5.3	100
LGB-S/X0507-182K	1800		50		1.2	6.2	90
LGB-S/X0507-222K	2200	±10%	50	0.252	1.1	6.8	80
LGB-S/X0507-272K	2700		45		1.0	10	60
LGB-S/X0507-332K	3300		45		0.95	12	60
LGB-S/X0507-392K	3900		45		0.90	13	55
LGB-S/X0507-472K	4700		45		0.90	15	55
LGB-S/X0507-562K	5600		45		0.80	22	50
LGB-S/X0507-682K	6800		45		0.75	25	45
LGB-S/X0507-822K	8200		45		0.70	28	45

Características de los modelos LGB/ LGB-X(S) 0608

Número de serie	L (μH)	TOL	Qmin	Fr ( MHz)	SRF (MHz)	Rdc (Ω)	Idc (mA)
LGB-S/X0608-1R0M	1.0	±20%	85	7.96	100	0.02	4400
LGB-S/X0608-1R2M	1.2		85		90	0.02	4000
LGB-S/X0608- 1R5M	1.5		85		80	0.03	3560
LGB-S/X0608-1R8M	1.8		80		65	0.04	3500
LGB-S/X0608-2R2M	2.2		80		55	0.05	3000
LGB-S/X0608-2R7M	2.7		80		50	0.06	2800
LGB-S/X0608-3R3M	3.3		75		40	0.06	2500
LGB-S/X0608-3R9M	3.9		75		38	0.07	2300
LGB-S/X0608-4R7M	4.7		75		36	0.07	2000
LGB-S/X0608-5R6M	5.6		70		35	0.075	1800
LGB-S/X0608-6R8M	6.8		70		30	0.075	1500
LGB-S/X0608-8R2M	8.2		70		25	0.08	1400
LGB-S/X0608-100K	10	±10%	25	2.52	16	0.09	1300
LGB-S/X0608-120K	12		25		15	0.10	1100
LGB-S/X0608-150K	15		25		13	0.11	1050
LGB-S/X0608-180K	18		25		12	0.12	1000
LGB-S/X0608-220K	22		25		11	0.12	960
LGB-S/X0608-270K	27		25		10	0.17	920
LGB-S/X0608-330K	33		25		8.8	0.19	880
LGB-S/X0608-390K	39		20		8.4	0.22	860
LGB-S/X0608-470K	47		20		8.2	0.23	830
LGB-S/X0608-560K	56		20		7.9	0.29	810
LGB-S/X0608-680K	68		20		7.0	0.37	750
LGB-S/X0608-820K	82		20		6.5	0.39	740
LGB-S/X0608-101K	100	±10%	30	0.796	5.7	0.44	710
LGB-S/X0608-121K	120		30		5.2	0.64	680
LGB-S/X0608-151K	150		30		4.7	0.73	600
LGB-S/X0608-181K	180		35		4.2	0.82	540
LGB-S/X0608-221K	220		35		3.7	0.92	450
LGB-S/X0608-271K	270		35		3.5	1.3	420
LGB-S/X0608-331K	330		35		3.2	1.5	400
LGB-S/X0608-391K	390		40		2.9	1.8	370
LGB-S/X0608-471K	470		40		2.4	2.3	340
LGB-S/X0608-561K	560		40		2.2	3.0	280
LGB-S/X0608-681K	680		40		2.0	3.25	250
LGB-S/X0608-821K	820		40		1.6	4.16	230
LGB-S/X0608-102K	1000		80		1.5	4.55	210
LGB-S/X0608-122K	1200		80		1.4	5.20	200

Características de los modelos LGB/ LGB-X(S)0608

Número de serie	L (μH)	TOL	Qmin	Fr ( MHz)	SRF (MHz)	Rdc (Ω)	Idc (mA)
LGB-S/X0608-152K	1500	±10%	75	0.796	1.3	6.54	150
LGB-S/X0608-182K	1800		75		1.2	7.54	140
LGB-S/X0608-222K	2200		75		1.1	8.32	130
LGB-S/X0608-272K	2700		75		1.0	9.62	120
LGB-S/X0608-332K	3300		75		0.85	10.92	110
LGB-S/X0608-392K	3900		75		0.78	16.12	90
LGB-S/X0608-472K	4700		75		0.68	17.81	80
LGB-S/X0608-562K	5600		75		0.62	20.0	70
LGB-S/X0608-682K	6800		75		0.61	27.3	65
LGB-S/X0608-822K	8200		75		0.60	31.2	50
LGB-S/X0608-103K	10000		70	0.0796	0.48	39.0	45
LGB-S/X0608-123K	12000		70		0.44	42.9	40
LGB-S/X0608-153K	15000		70		0.35	65.0	35
LGB-S/X0608-183K	18000		70		0.30	72.8	30
LGB-S/X0608-223K	22000		70		0.28	82.55	30
LGB-S/X0608-273K	27000		70		0.25	95.42	25
LGB-S/X0608-333K	33000		70		0.23	135.2	25
LGB-S/X0608-393K	39000		70		0.20	154.7	20
LGB-S/X0608-473K	47000		70		0.16	172.9	20

Características de los modelos LGB/ LGB-X(S)1012

Número de serie	L (μH)	TOL	Qmin	Fr ( MHz)	SRF (MHz)	Rdc (Ω)	Idc (mA)
LGB-S/X1012-4R7K	4.7	±10%	5	0.01		0.05	4700
LGB-S/X1012-150K	15		5			0.05	3000
LGB-S/X1012-200K	20		5			0.042	2500
LGB-S/X1012-101K	100		5			0.18	1200
LGB-S/X1012-151K	150		5			0.27	1000
LGB-S/X1012-202K	2000		5			4.4	300
LGB-S/X1012-153K	15000		5			14.3	20

Características de los modelos LGB/ LGB-X(S)0810

Número de serie	L (μH)	TOL	Qmin	Fr ( MHz)	SRF (MHz)	Rdc (Ω)	Idc (mA)
LGB-S/X0810-1R0M	1.0	±20%	90	7.96	100	0.02	3400
LGB-S/X0810-1R2M	1.2		90		90	0.02	3400
LGB-S/X0810-1R5M	1.5		95		80	0.02	3400
LGB-S/X0810-1R8M	1.8		95		75	0.03	3300
LGB-S/X0810-2R2M	2.2		100		70	0.03	3000
LGB-S/X0810-2R7M	2.7		100		60	0.04	3000
LGB-S/X0810-3R3M	3.3		100		56	0.04	3000
LGB-S/X0810-3R9M	3.9		100		52	0.05	2900
LGB-S/X0810-4R7M	4.7		100		30	0.05	2900
LGB-S/X0810-5R6M	5.6		100		30	0.06	2600
LGB-S/X0810-6R8M	6.8		90		20	0.06	2500
LGB-S/X0810-8R2M	8.2		80		17	0.06	2000
LGB-S/X0810-100K	10	±10%	90	2.52	12	0.10	1600
LGB-S/X0810-120K	12		90		11	0.10	1400
LGB-S/X0810-150K	15		90		10	0.10	1300
LGB-S/X0810-180K	18		80		9.0	0.11	1200
LGB-S/X0810-220K	22		70		8.0	0.13	1100
LGB-S/X0810-270K	27		70		7.0	0.14	1000
LGB-S/X0810-330K	33		70		7.0	0.16	900
LGB-S/X0810-390K	39		70		6.0	0.16	800
LGB-S/X0810-470K	47		70		5.5	0.16	700
LGB-S/X0810-560K	56		60		5.5	0.22	700
LGB-S/X0810-680K	68		60		5.0	0.23	600
LGB-S/X0810-820K	82		60		4.5	0.27	500
LGB-S/X0810-101K	100		40	0.796	4.5	0.29	400
LGB-S/X0810-121K	120		40		4.5	0.33	400
LGB-S/X0810-151K	150		40		4.5	0.46	350
LGB-S/X0810-181K	180		40		4.0	0.51	350
LGB-S/X0810-221K	220		40		3.5	0.62	300
LGB-S/X0810-271K	270		30		3.0	0.65	250
LGB-S/X0810-331K	330		30		3.0	0.79	250
LGB-S/X0810-391K	390		30		2.5	0.91	200
LGB-S/X0810-471K	470		30		2.5	1.2	180
LGB-S/X0810-561K	560		30		2.0	1.2	160
LGB-S/X0810-681K	680		30		2.0	1.5	140
LGB-S/X0810-821K	820		25		2.0	1.7	140
LGB-S/X0810-102K	1000		50	0.252	2.0	2.0	120
LGB-S/X0810-122K	1200		45		1.5	2.3	100
LGB-S/X0810- 152K	1500		45		1.5	2.9	80
LGB-S/X0810- 182K	1800		45		1.5	3.5	70
LGB-S/X0810-222K	2200		50		1.0	4.2	60

Características de los modelos LGB/ LGB-X(S)0810

Número de serie	L (μH)	TOL	Qmin	Fr ( MHz)	SRF (MHz)	Rdc (Ω)	Idc (mA)
LGB-S/X0810-272K	2700	±10%	50	0.252	1.0	5.1	60
LGB-S/X0810-332K	3300		50		0.9	6.1	50
LGB-S/X0810-392K	3900		50		0.8	7.8	50
LGB-S/X0810-472K	4700		55		0.7	11	45
LGB-S/X0810-562K	5600		55		0.6	11	45
LGB-S/X0810-682K	6800		55		0.6	14	40
LGB-S/X0810-822K	8200		60		0.6	15	35
LGB-S/X0810-103K	10000		100	0.0796	0.5	20	35
LGB-S/X0810-123K	12000		100		0.4	24	35
LGB-S/X0810-153K	15000		100		0.4	28	30
LGB-S/X0810-183K	18000		100		0.4	42	30
LGB-S/X0810-223K	22000		100		0.3	43	25
LGB-S/X0810-273K	27000		100		0.3	55	25
LGB-S/X0810-333K	33000		90		0.3	65	25
LGB-S/X0810-393K	39000		90		0.2	87	20
LGB-S/X0810-473K	47000		85		0.2	98	20
LGB-S/X0810-563K	56000		80		0.2	128	20
LGB-S/X0810-683K	68000		70		0.2	141	20
LGB-S/X0810-823K	82000		70		0.2	161	20
LGB-S/X0810-104K	100000		55		0.2	180	20

Características de los modelos LGB/ LGB-X(S)1415

Números de serie	L (μH)	TOL	Qmin	Fr ( MHz)	SRF (MHz)	Rdc (Ω)	Idc (mA)
LGB-S/X1415-141K	135	±10%	5	0.01		0.2	2500
LGB-S/X1415-101K	100		5			0.1	3000
LGB-S/X1415-301K	300		5			0.35	1500
LGB-S/X1415-371K	370		5			0.35	1200
LGB-S/X1415-451K	450		5			0.35	1000
LGB-S/X1415-551K	550		5			0.35	1000
LGB-S/X1415-561K	560		5			0.49	1000
LGB-S/X1415-801K	800		5			0.5	700
LGB-S/X1415-302K	3000		5			2.65	300
LGB-S/X1415-402K	4000		5			3.0	200

Características de los modelos LGB/ LGB-X(S)0912

Número de serie	L (μH)	TOL	Qmin	Fr ( MHz)	SRF (MHz)	Rdc (Ω)	Idc (mA)
LGB-S/X0912-100K	10	±10%	110	2.52	24	0.04	2800
LGB-S/X0912-120K	12		110		18	0.04	2700
LGB-S/X0912-150K	15		110		11	0.05	2300
LGB-S/X0912-180K	18		90		8.4	0.06	2100
LGB-S/X0912-220K	22		90		8.2	0.07	2000
LGB-S/X0912-270K	27		90		7.1	0.10	1700
LGB-S/X0912-270K	33		90		7.1	0.12	1500
LGB-S/X0912-390K	39		80		6.9	0.12	1400
LGB-S/X0912-470K	47		70		6.0	0.13	1300
LGB-S/X0912-560K	56		70		5.7	0.14	1200
LGB-S/X0912-680K	68		60		5.4	0.15	1000
LGB-S/X0912-820K	82		50		4.6	0.16	900
LGB-S/X0912-101K	100		60	0.796	4.0	0.25	700
LGB-S/X0912-121K	120		60		3.6	0.28	700
LGB-S/X0912-151K	150		55		3.1	0.32	700
LGB-S/X0912-181K	180		55		2.8	0.47	600
LGB-S/X0912-221K	220		55		2.5	0.53	500
LGB-S/X0912-271K	270		50		2.4	0.60	450
LGB-S/X0912-331K	330		50		2.0	0.85	400
LGB-S/X0912-391K	390		50		2.0	0.95	350
LGB-S/X0912-471K	470		40		1.9	1.1	350
LGB-S/X0912-561K	560		30		1.8	1.2	300
LGB-S/X0912-681K	68		30		1.7	1.3	250
LGB-S/X0912-821K	820		30		1.5	1.4	200
LGB-S/X0912-102K	1000		70	0.252	1.1	2.0	200
LGB-S/X0912-122K	1200		70		1.0	2.3	180
LGB-S/X0912-152K	1500		70		1.0	2.9	150
LGB-S/X0912-182K	1800		70		0.9	3.3	120
LGB-S/X0912-222K	2200		70		0.7	4.5	110
LGB-S/X0912-272K	2700		70		0.7	5.5	80
LGB-S/X0912-332K	3300		60		0.6	5.7	80
LGB-S/X0912-392K	3900		60		0.6	6.5	60
LGB-S/X0912-472K	4700		60		0.6	7.2	180
LGB-S/X0912-562K	5600		60		0.5	9.5	50
LGB-S/X0912-682K	6800		60		0.5	11	50
LGB-S/X0912-822K	8200		50		0.4	13	50
LGB-S/X0912-103K	10000		100	0.0796	0.3	16	40
LGB-S/X0912-123K	12000		100		0.3	18	40
LGB-S/X0912-153K	15000		90		0.3	21	40
LGB-S/X0912-183K	18000		90		0.3	23	40

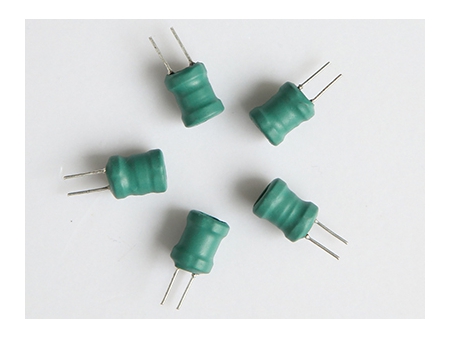

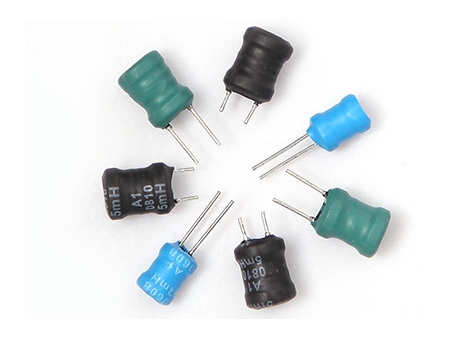

Los modelos anteriormente mencionados son nuestros modelos en stock de las inductancias fijas radiales. Con 30 años de experiencia en la fabricación de componentes electrónicos pasivos, somos capaces de personalizar tres tipos distintos de inductancias fijas para los clientes.

Productos relacionados
